Figure 13 | Scientific Reports

Figure 13

From: Low-frequency magnetic response of gold nanoparticles

Figure 13

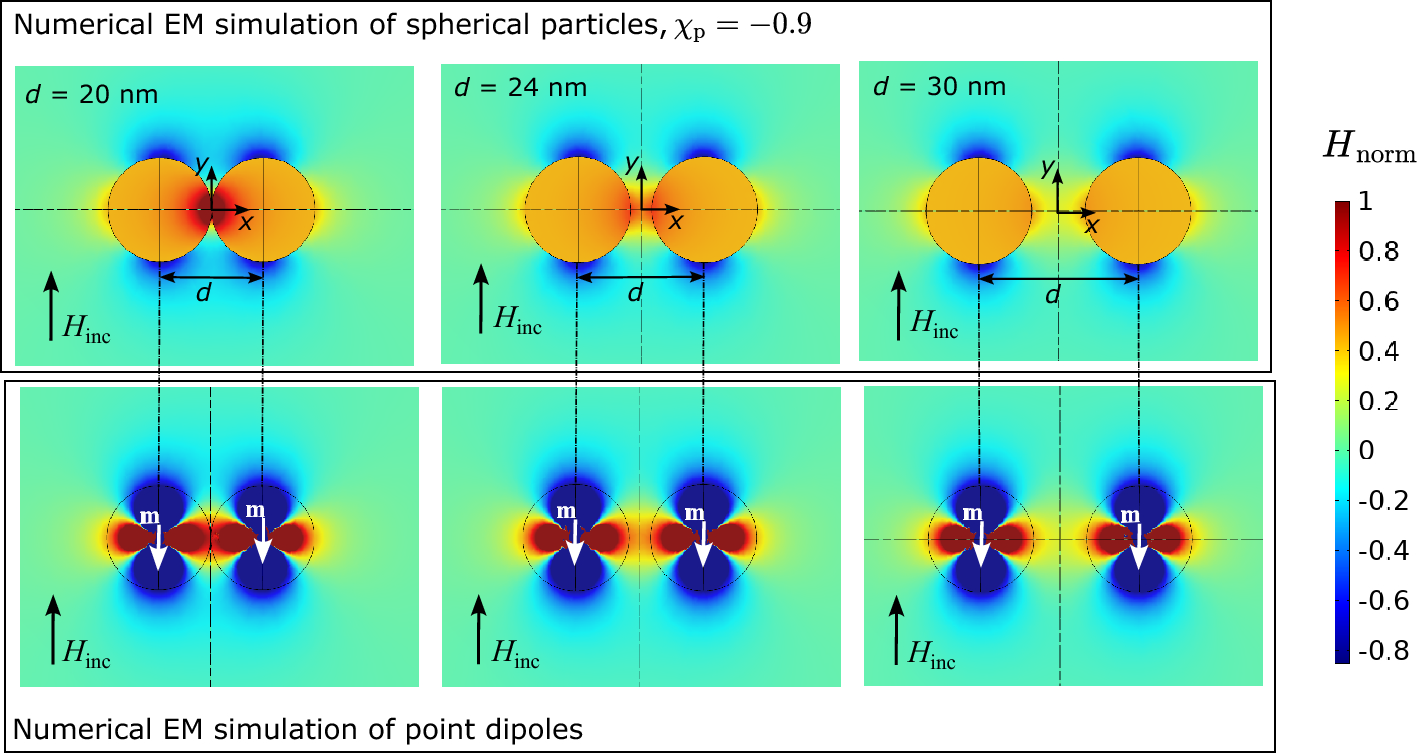

Numerical EM simulation of spherical particles at different distances d and comparison with numerical simulation of magnetic point dipoles with the same dipole moment \(\textbf{m}\) as the spherical particles at the same distance. View on the longitudinal axis cross-section of the sphere through the center (\(z=0\)).
