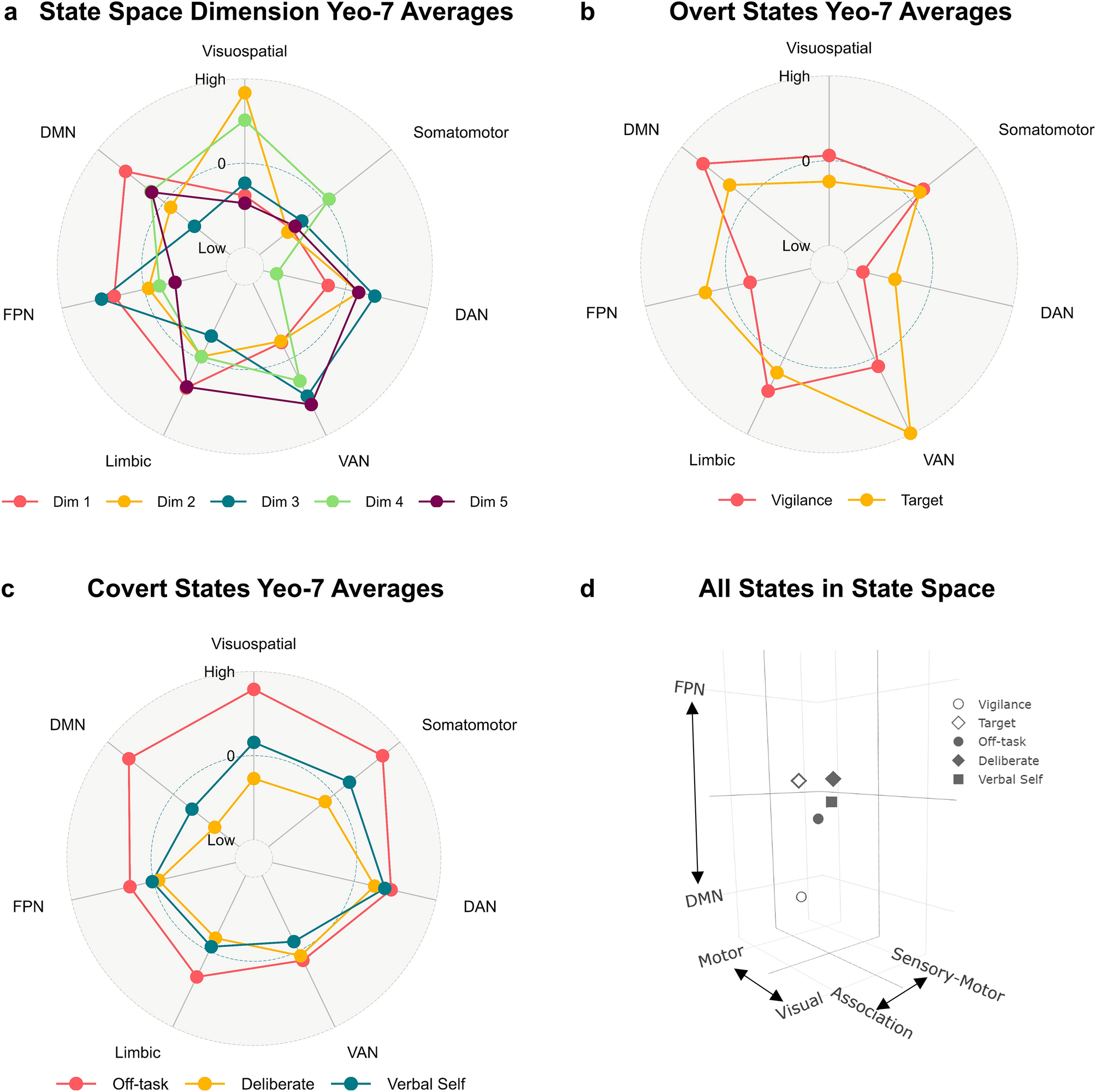

Figure 2
From: Experience sampling reveals the role that covert goal states play in task-relevant behavior
Network configuration of the state space dimensions and the overt and covert brain states, and the group-average location of each brain state along the first three dimensions of the state space. (a) A radar plot showing the average gradient value in each of the Yeo-7 brain networks36 for each of the five dimensions that make up the 5-d state space. To allow comparison of network configuration along each state space dimension, the network-averaged values were z-scored within each gradient prior to plotting. The maximum value (‘High’) is 3 and the minimum value (‘Low’) is -3. Each color represents a different dimension, as shown in the legend at the bottom of the plot (Dim dimension, DAN dorsal attention network, VAN ventral attention network, FPN fronto-parietal network, DMN default mode network). (b) A radar plot showing the average z-stat value in each of the Yeo-7 brain networks36 for each of the group-level overt task brain states (vigilance and target detection). The maximum value (‘High’) is 4.5 and the minimum value (‘Low’) is − 4.5. Each color represents a different group-level brain state, as shown in the legend at the bottom of the plot. (c) A radar plot showing the average z-stat value in each of the Yeo-7 brain networks36 for each of the group-level covert experiential brain states (off-task social episodic cognition, deliberate task focus, and verbal, self-relevant thought). The maximum value (‘High’) is 1.5 and the minimum value (‘Low’) is − 1.5. Each color represents a different group-level brain state, as shown in the legend at the bottom of the plot. (d) A 3-d plot showing the group-average location of each (individual-level) brain state examined in the current study along the first three dimensions of the state space. Open shapes represent overt task states (vigilance and target detection) while closed shapes represent covert states (off-task social episodic cognition, deliberate task focus, and verbal, self-relevant thought). The networks at the extreme ends of each dimension are plotted as axis labels and each axis ranges from − 0.3 to 0.3.
