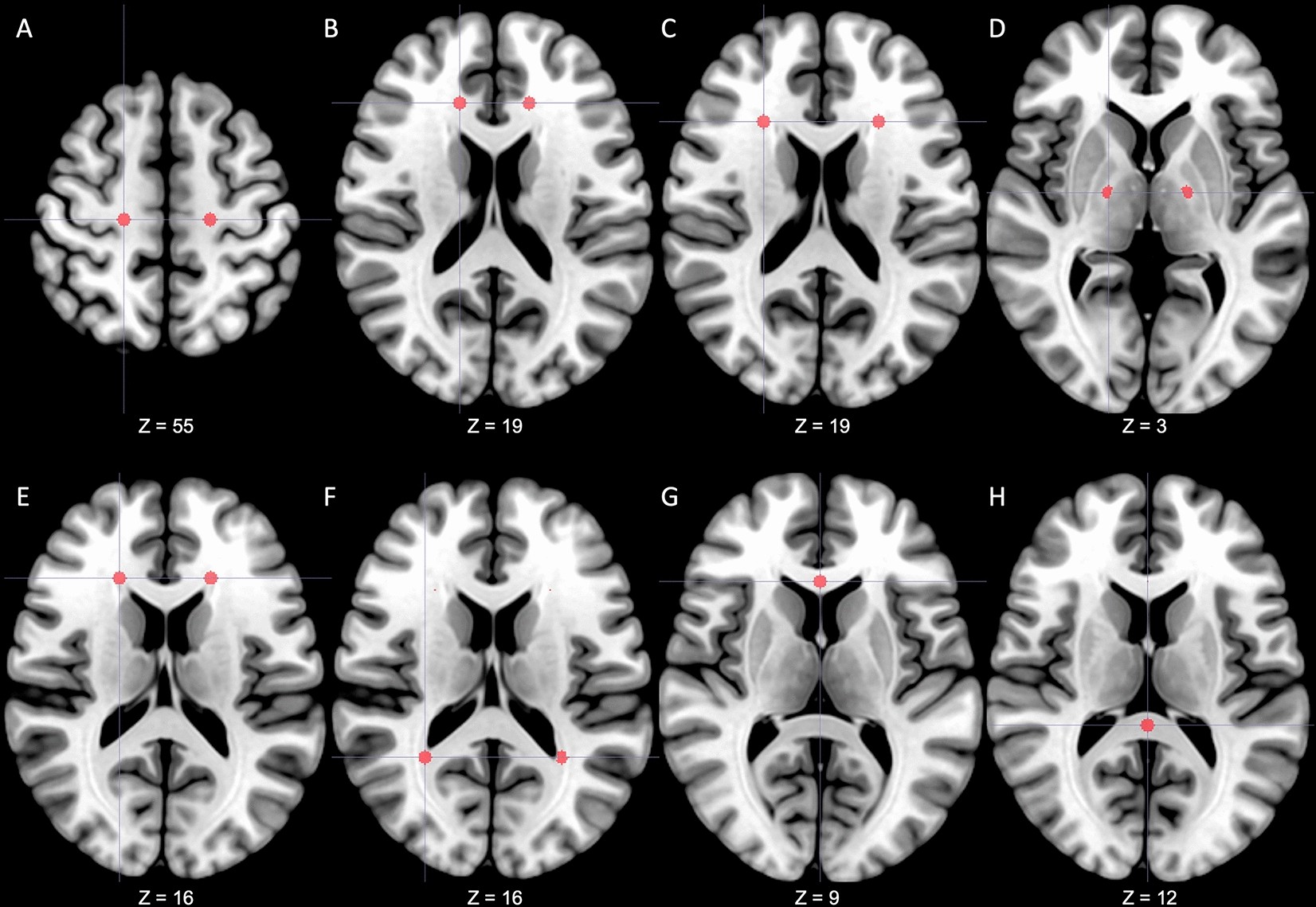

Predetermined regions-of-interest. A total of 14 regions of interest were predetermined in the centrum semiovale (A), anterior area of corona radiata (B), lateral area of corona radiata (C), posterior limbs of the internal capsule (D), anterior horns of the lateral ventricle (E), posterior horns of the lateral ventricle (F), genu of corpus callosum (G) and splenium of corpus callosum (H). From a radiological perspective, the right side of the figure is the patient's left side. The z coordinate represents the position on the MNI152 standard template. MNI Montreal Neurological Institute.
