Figure 2

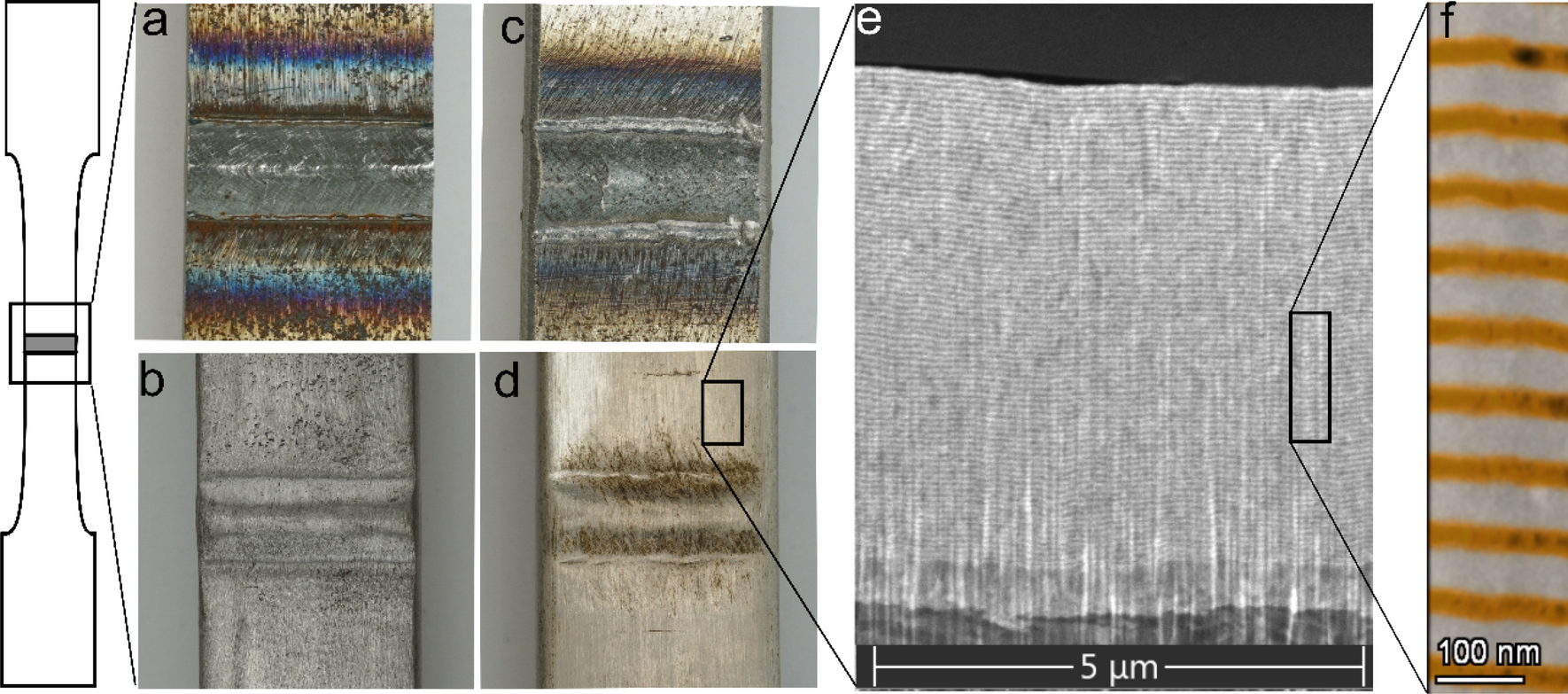

From: A novel post-weld treatment using nanostructured metallic multilayer for superior fatigue strength
