Figure 13

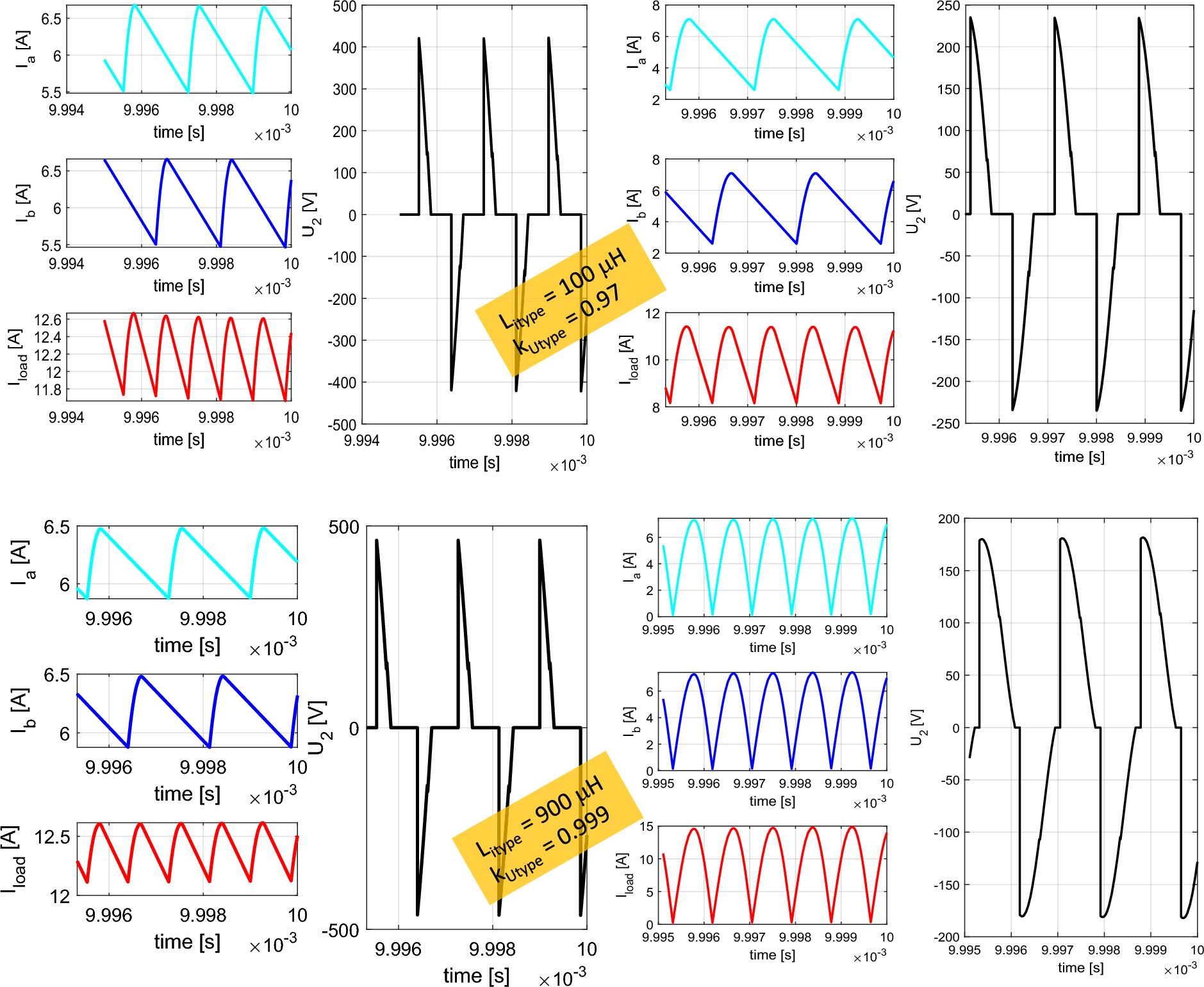

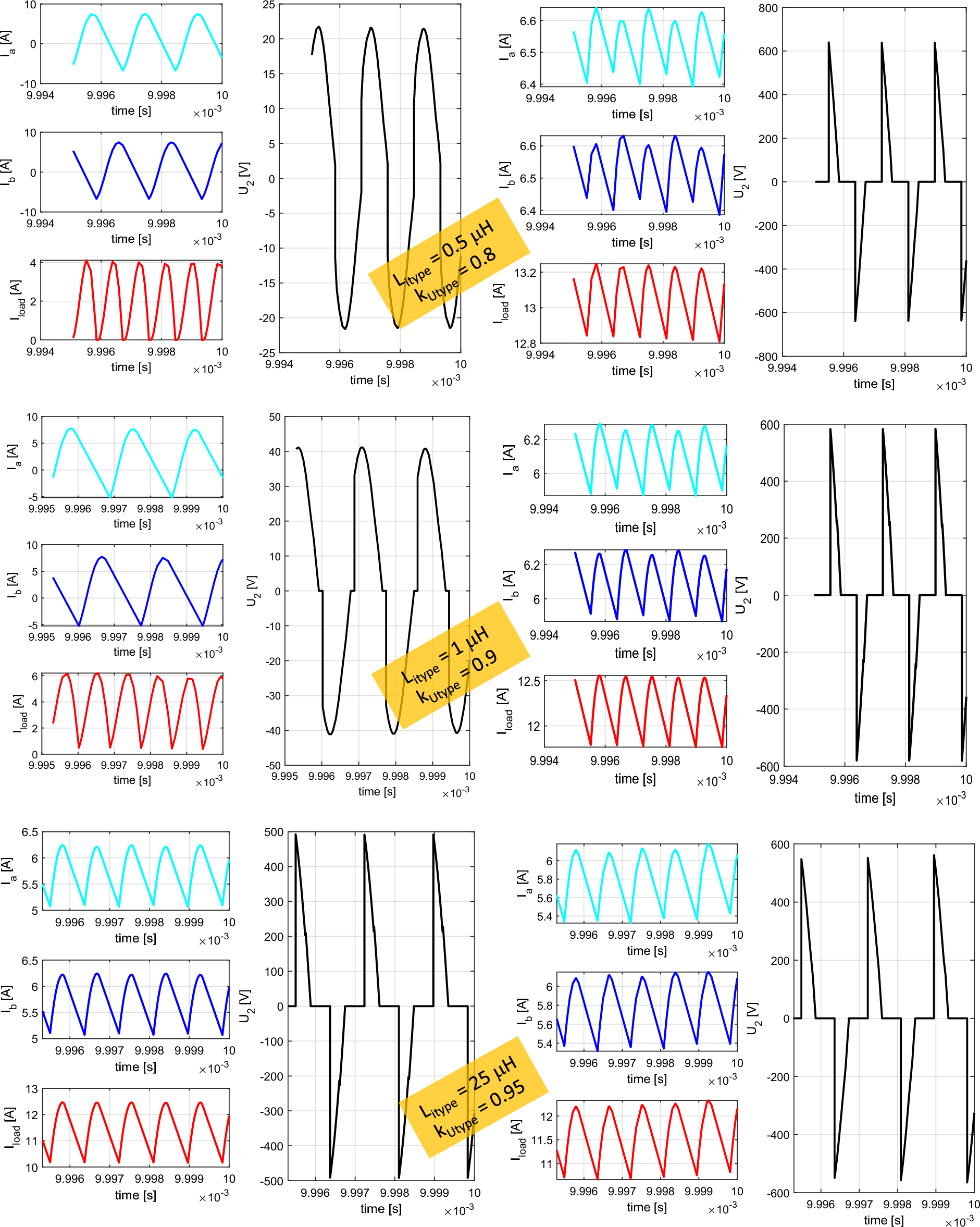

Time-waveforms from simulation models for Itype rectifier (left) and Utype rectifier (right) during parametric change of the inductance values (Itype) and coupling factor (Utype).
Figure 13 | Scientific Reports
Time-waveforms from simulation models for Itype rectifier (left) and Utype rectifier (right) during parametric change of the inductance values (Itype) and coupling factor (Utype).
