From: pH/redox responsive size‐switchable intelligent nanovehicle for tumor microenvironment targeted DOX release

Figure 9

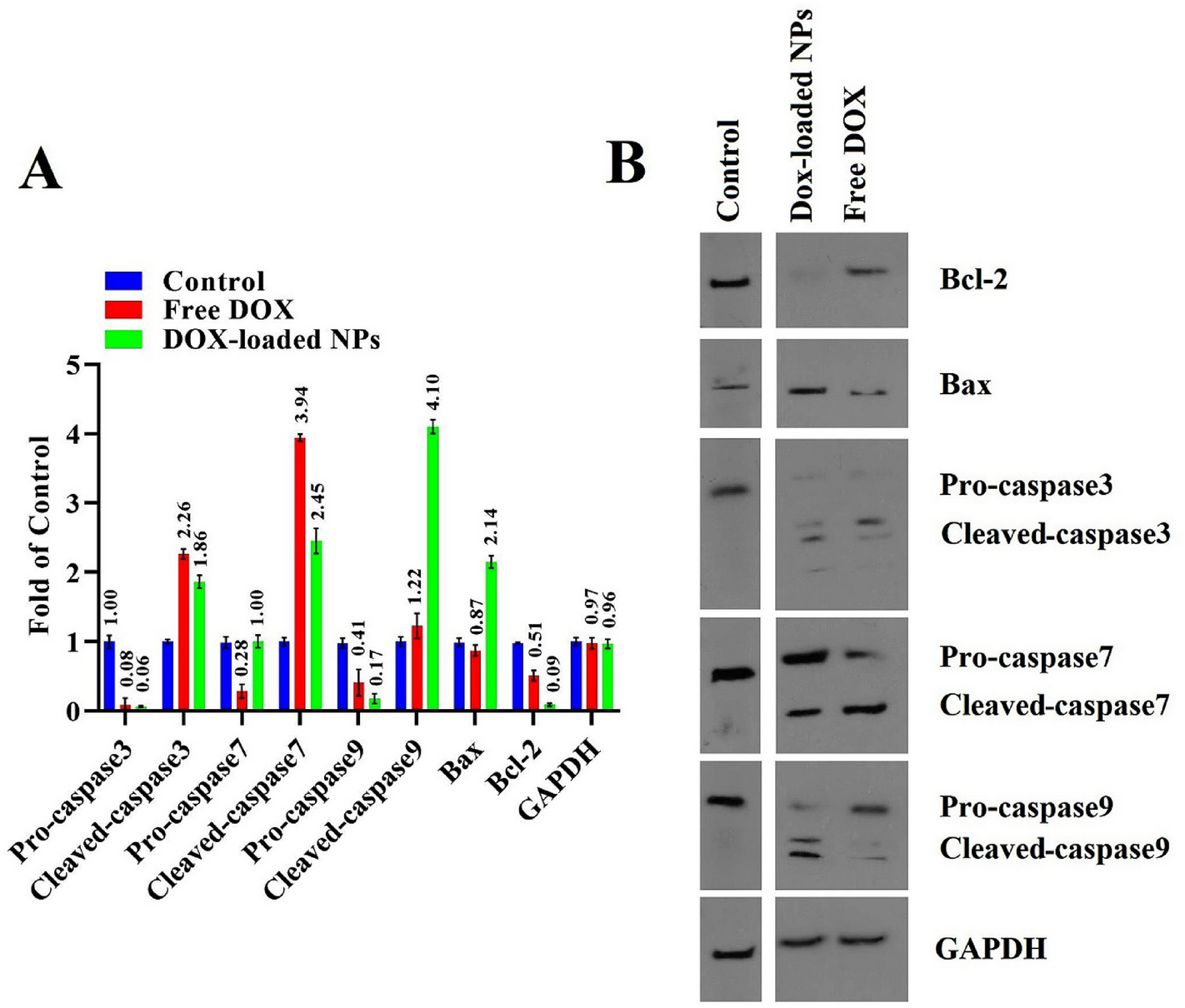

Plots of protein mood changes linked to the control group (protein expression = 1) provided from western blotting (MDA-MB-231 were treated with the concentration of IC50 dose of DOX-loaded NPs and free DOX) (A), and western blotting images of the MDA-MB-231 cells treated with DOX-loaded NPs and DOX (IC50 dose) (B). Untreated cells were considered the control group.
