Figure 2
From: Acoustic characterization for creep behaviors of marine sandy hydrate-bearing sediment

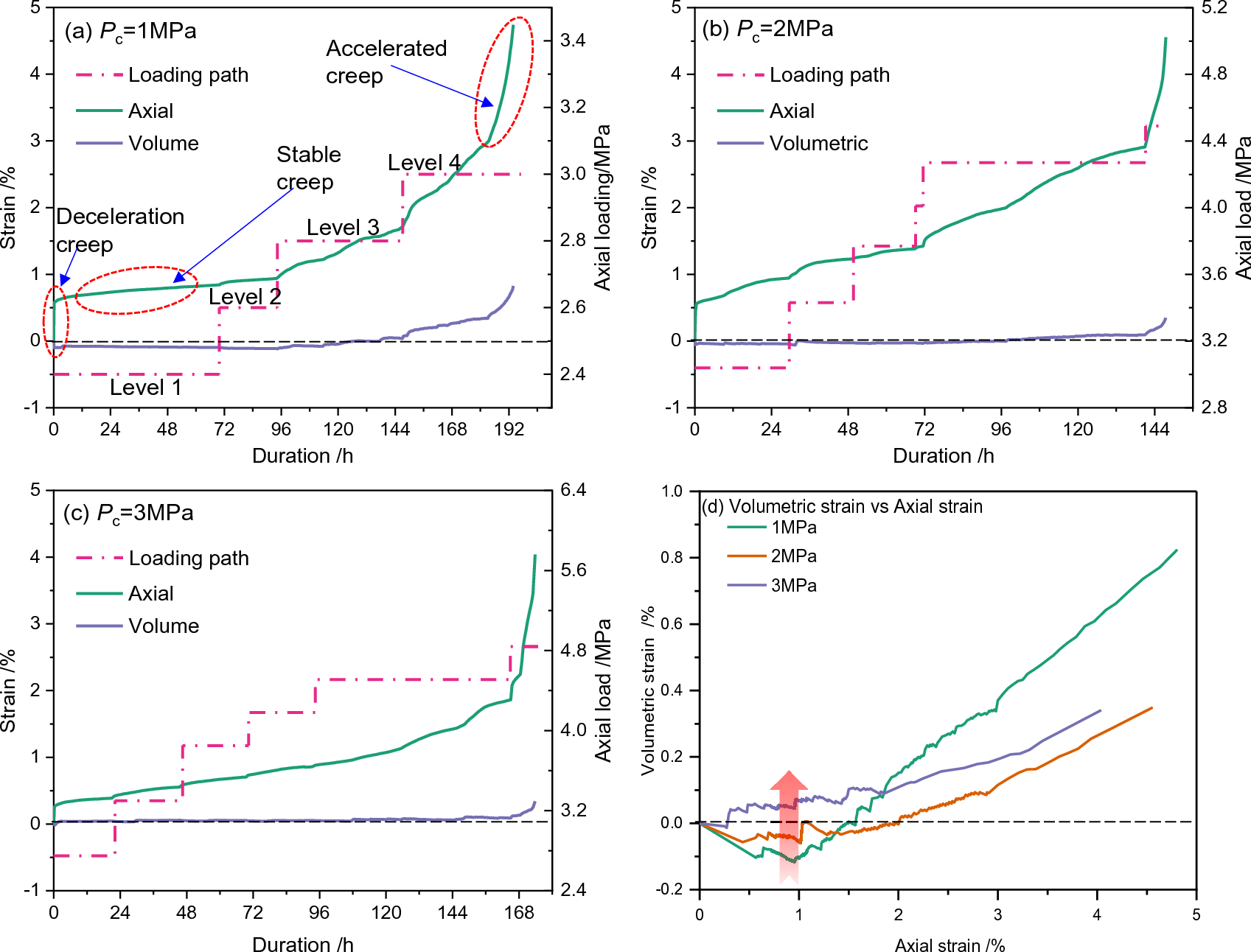

The evolution behaviors of axial strain, volumetric strain during creeping for sandy GHBS and the corresponding loading paths (dash-dotted line) when the average hydrate saturation is 30%. The relationship between volumetric strain and axial strain in (d) is extracted from (a) to (c).
