Figure 3 | Scientific Reports

Figure 3

From: Beneficial effects of bio-fabricated selenium nanoparticles as seed nanopriming agent on seed germination in rice (Oryza sativa L.)

Figure 3

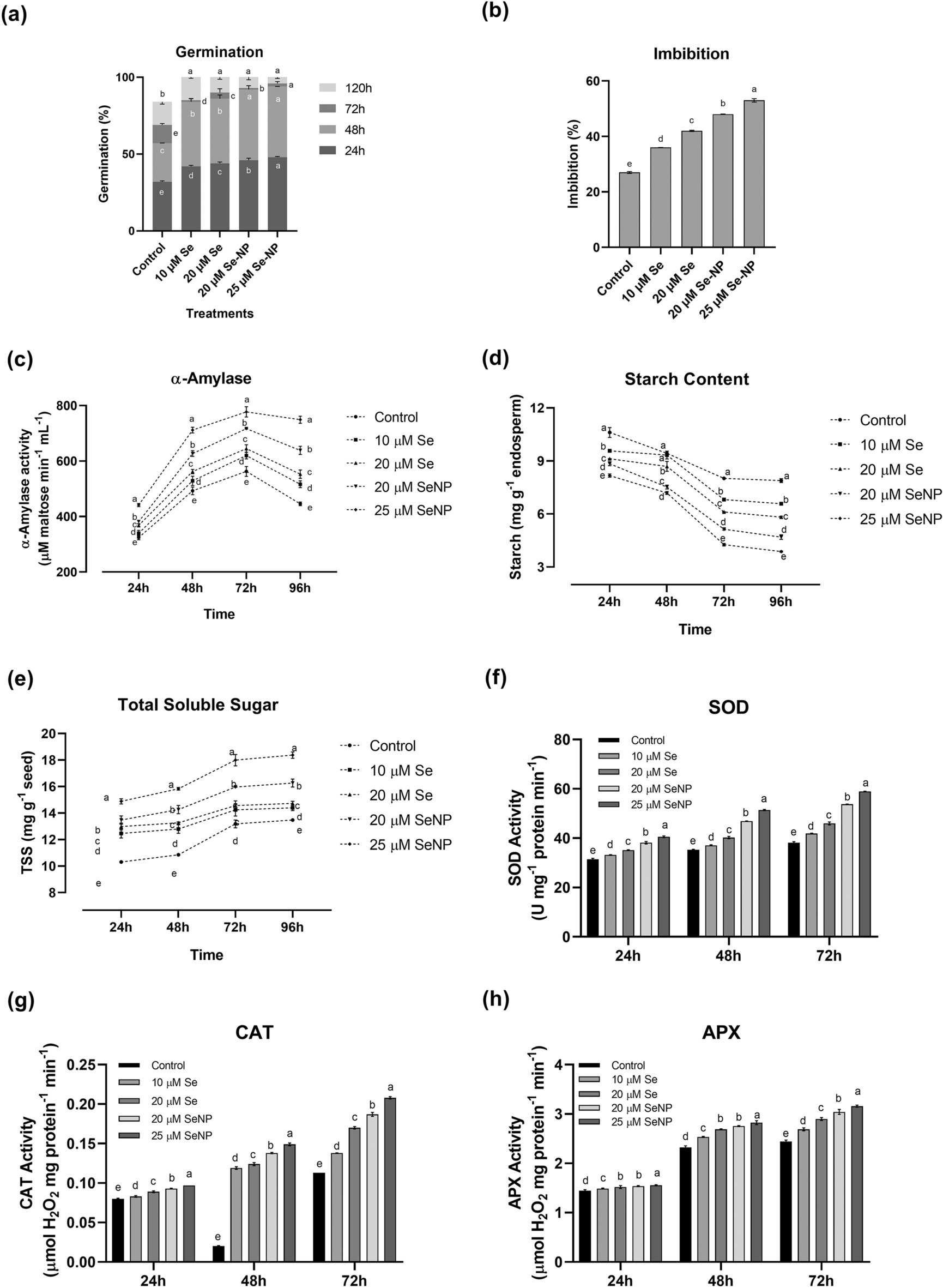

Physiological parameters of germinating rice seeds. (a) Germination% (b) Seed imbibition% (c) α-amylase activity (d) Starch content (e) Total soluble sugar content (f), SOD activity (g) CAT activity and (h) APX activity. All values are the mean of four replicates (± SD). ANOVA significant at (p < 0.01). Different letters indicate significantly different values in a particular tissue (DMRT, p < 0.01).
