Figure 2 | Scientific Reports

Figure 2

From: Foliar spraying of exogenous uniconazole (S3307) at the flowering stage as an effective method to resist low-temperature stress on mung bean [Vigna radiata (L.) Wilczek]

Figure 2The alt text for this image may have been generated using AI.

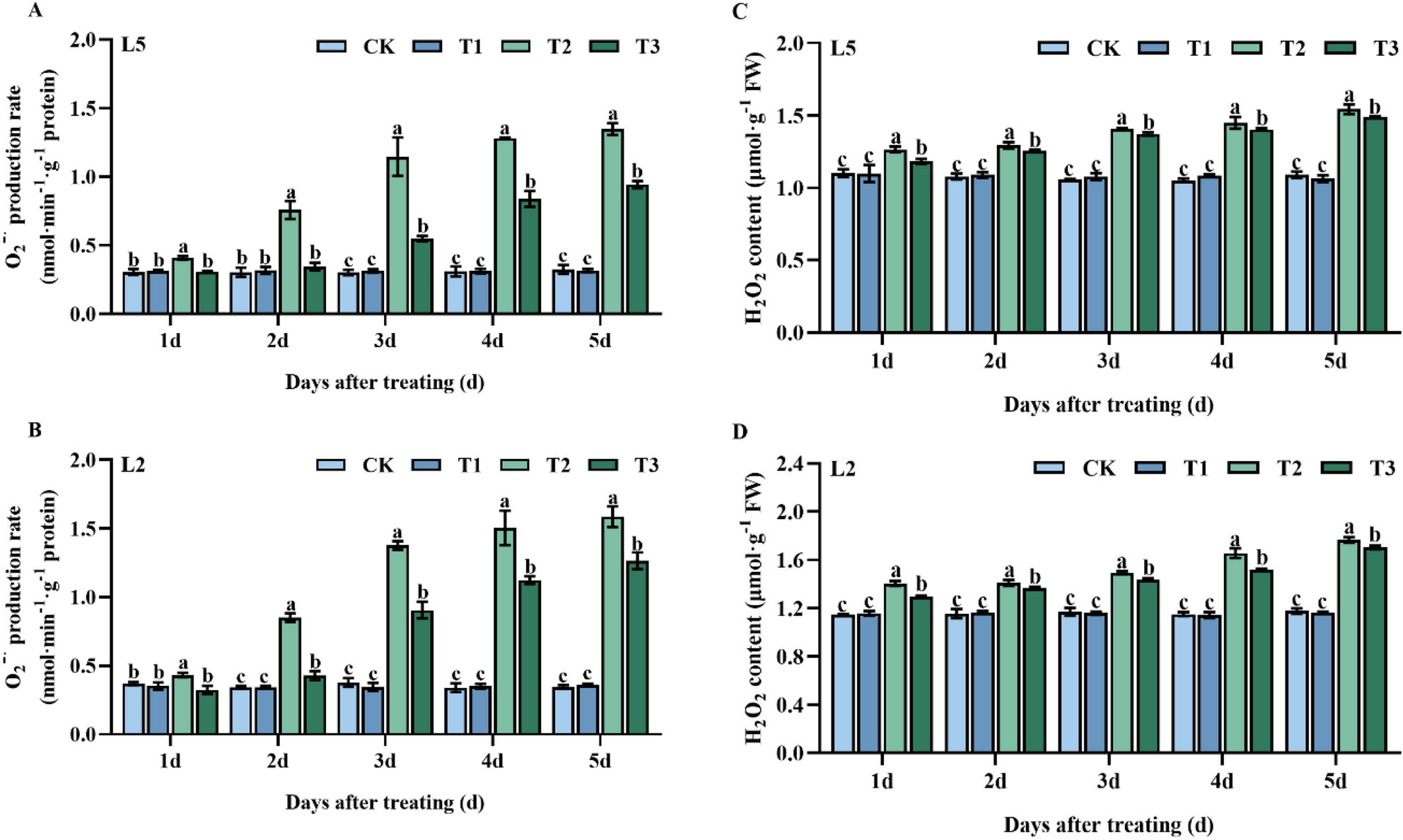

Effect of spraying exogenous S3307 on O2—production rate and H2O2 content of mung beans leaves under chilling stress at flowering stage; CK, plant grown in natural environment + spraying H2O; T1, plant grown in natural environment + spraying S3307; T2, plant grown in Average 12 °C + spraying H2O; T3, plant grown in Average 12 °C + spraying exogenous S3307.
