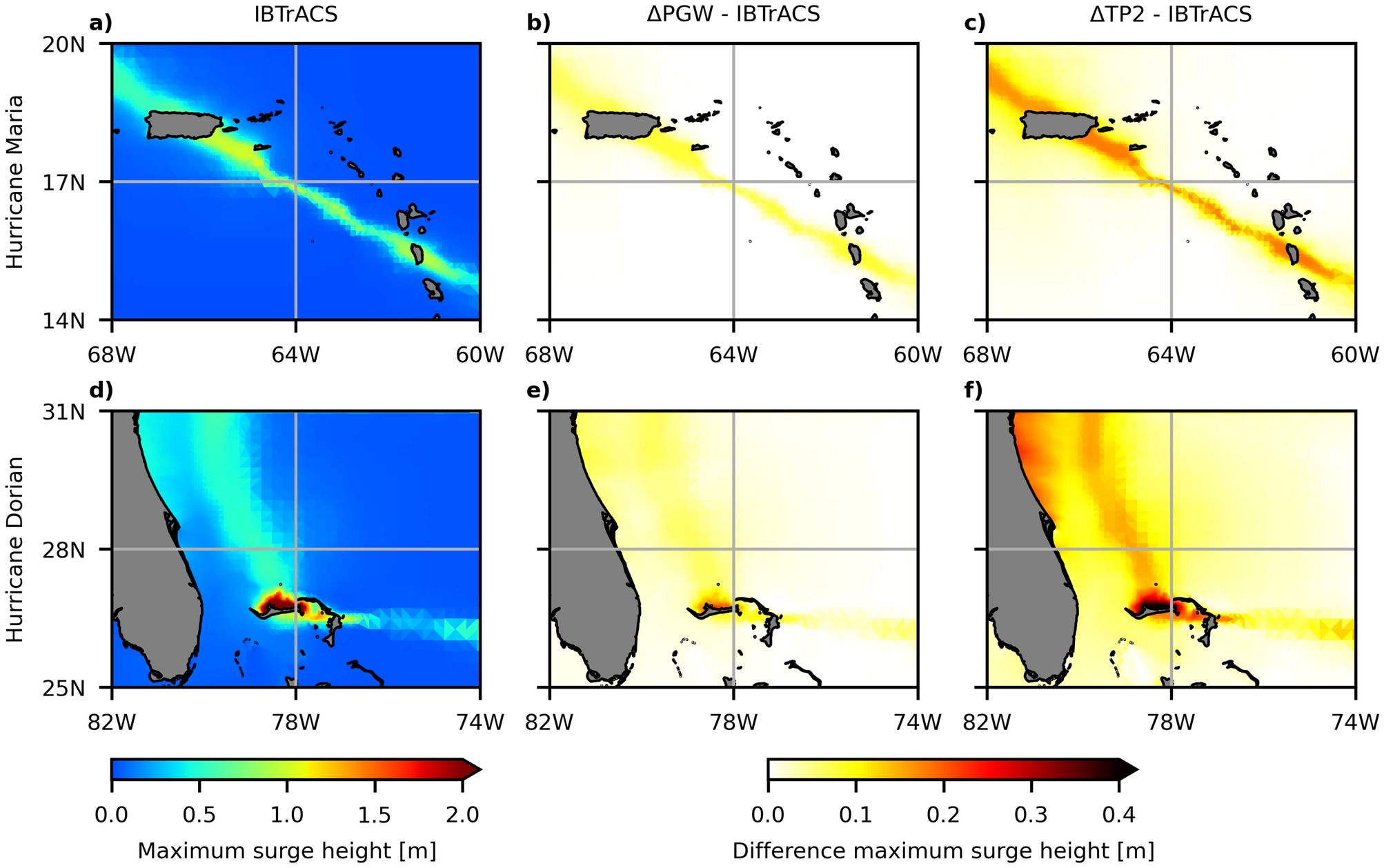

Figure 4

(a) maximum surge height of Hurricane Maria using the observed TC track as forcing; (b) difference in maximum surge height using ΔPGW, calculated as ΔPGW minus IBTrACS; (c) same as (b) but for ΔTP2; (d–f) same as (a–c) but for Hurricane Dorian.
