Figure 6 | Scientific Reports

Figure 6

From: Exploring the hemicellulolytic properties and safety of Bacillus paralicheniformis as stepping stone in the use of new fibrolytic beneficial microbes

Figure 6

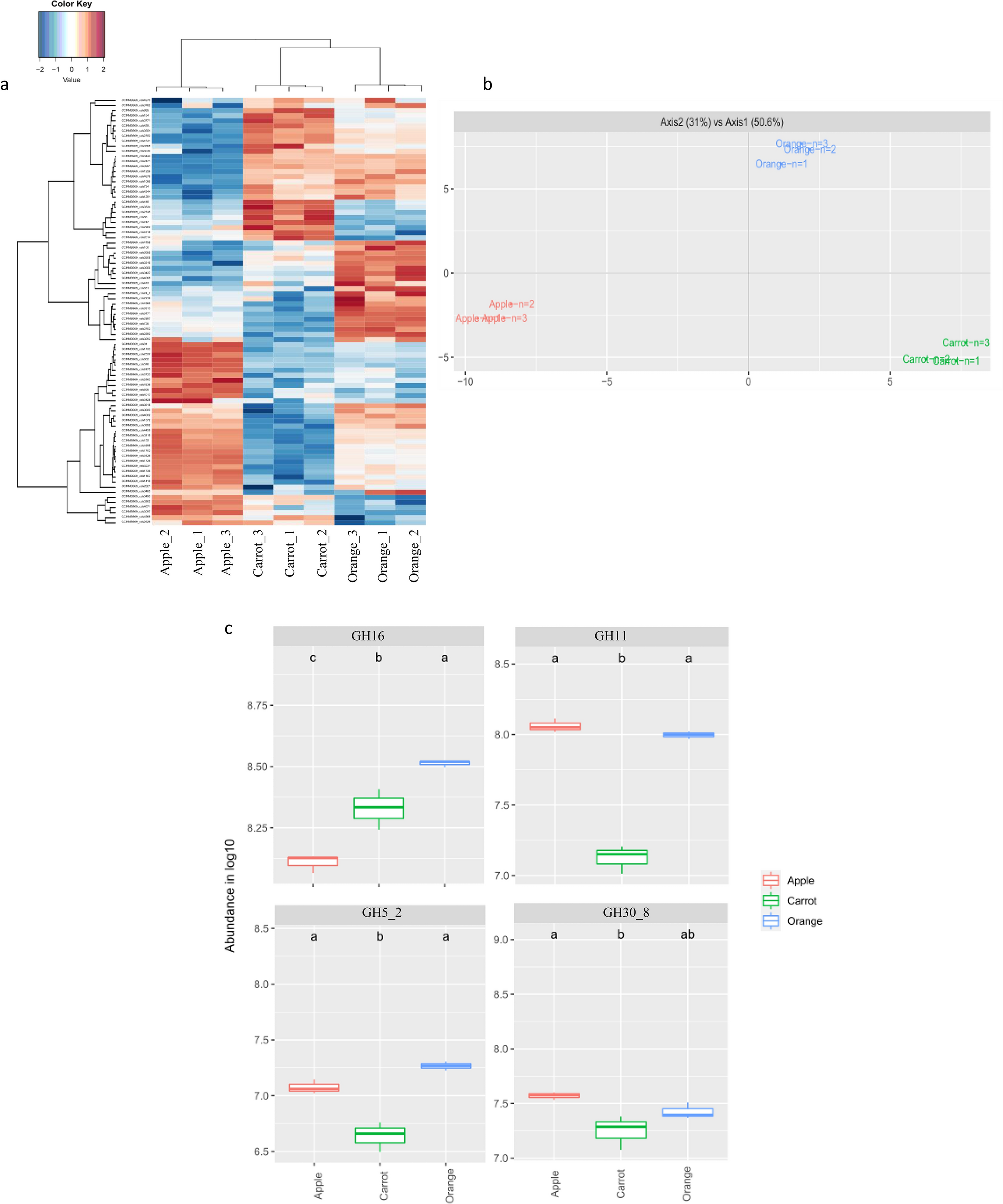

(a) Heat map comparison, (b) Principal Component Analysis of expression patterns, and (c) Abundance of selected CAZymes detected in the secretomes of B. paralicheniformis CCMM969 during growth on different carbon sources. Groups with different letters exhibit significantly different growth rates at a 95% confidence interval according to a Kruskhal–Wallis rank sum test, followed by a Dunn posthoc pairwise comparison test.
