Figure 1

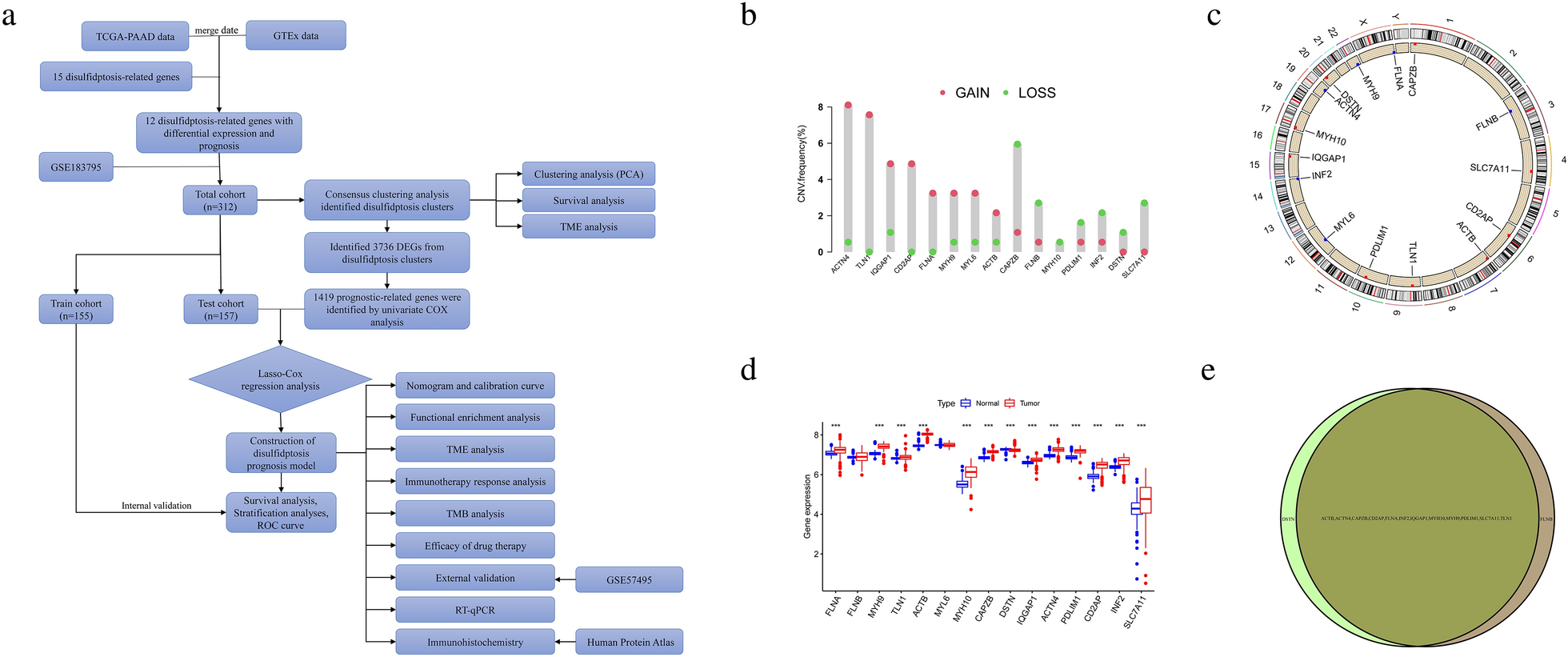

Study flow chart and expression and analysis of 15 DRGs in pancreatic cancer (a) the flow chart of this study. (b) The frequency of CNV of DRGs in 178 pancreatic cancer patients in TCGA-PAAD. (c) distribution of the 15 DRGs on the chromosomes of pancreatic cancer patients, with scattered red dots representing amplification frequency and scattered blue dots representing deletion frequency. (d) differential expression of 15 DRGs in pancreatic cancer tissues and normal control pancreatic tissues. (e) the intersection was taken to obtain 12 DRGs with expression differences and survival differences. *p < 0.05, **p < 0.01, ***p < 0.001.
