Figure 3
From: Biological dispersion in the time domain using finite element method software

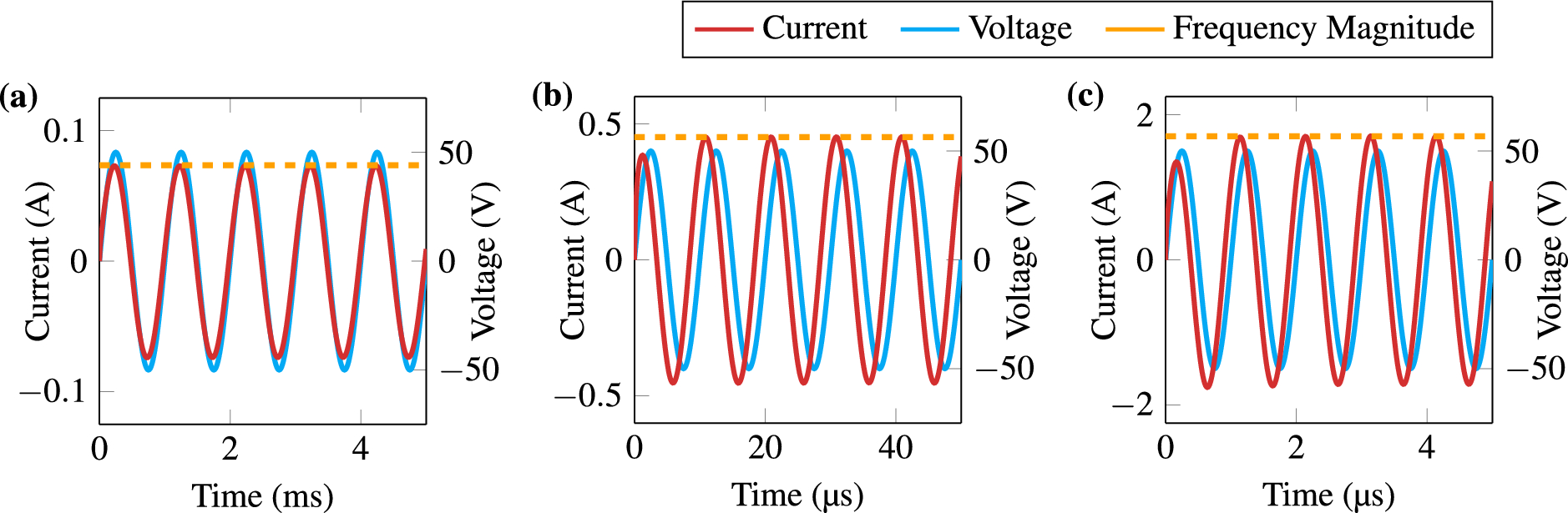

Time domain simulation results of electric current due to an oscillating applied voltage. Input signal frequency of (a) 1 kHz, (b) 100 kHz, and (c) 1 MHz. The Frequency Magnitude is the magnitude found in the frequency domain simulation for the particular input signal frequency.
