Figure 3 | Scientific Reports

Figure 3

From: Recording the maxillomandibular relationship with the Aqualizer system prior to occlusal splint therapy for treating temporomandibular disorders: a randomized controlled trial

Figure 3

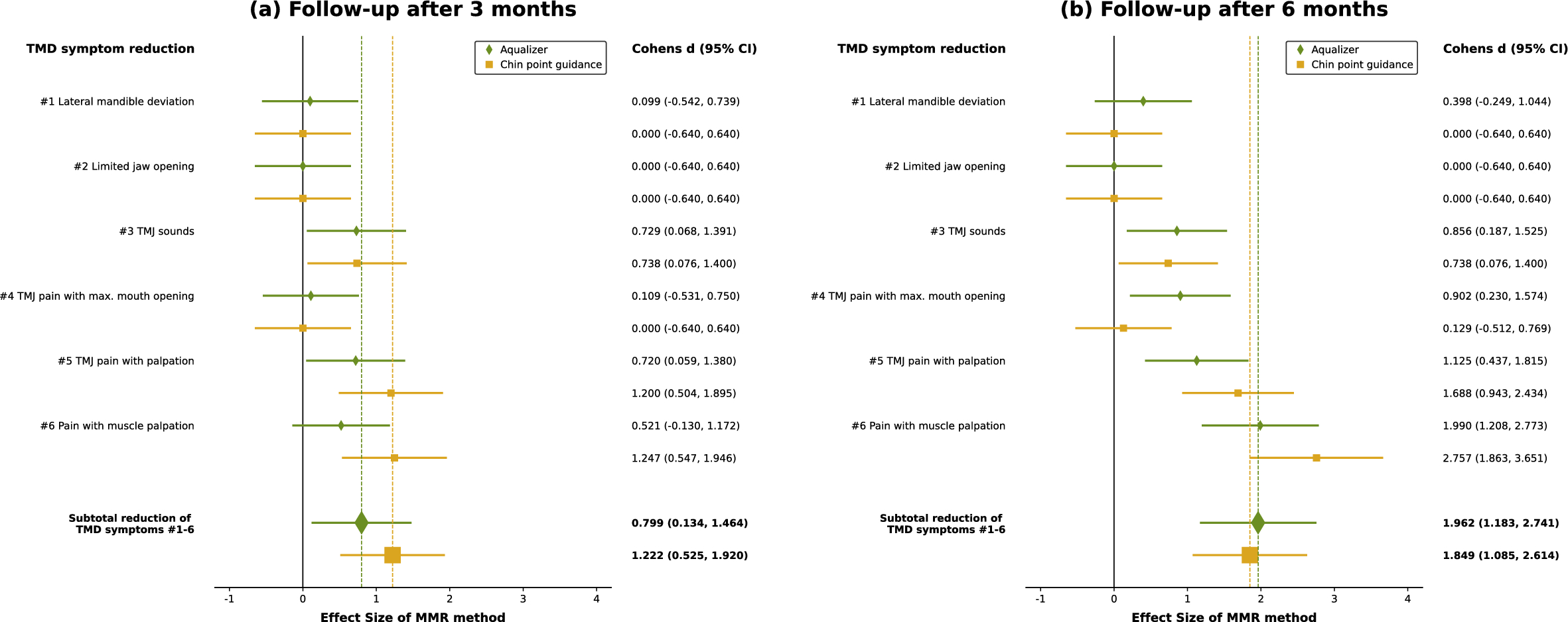

Forest plot for visualizing the effect sizes of the MMR registration method on the reduction of TMD symptoms #1–6 after Aqualizer- or Chin point guidance-based occlusal splint treatment for (a) 3 months and (b) 6 months. Effect sizes were estimated by computation of Cohen’s d and 95% confidence intervals (CI).
