From: Discovery of novel neutral glycosphingolipids in cereal crops: rapid profiling using reversed-phased HPLC–ESI–QqTOF with parallel reaction monitoring

Figure 4The alternative text for this image may have been generated using AI.

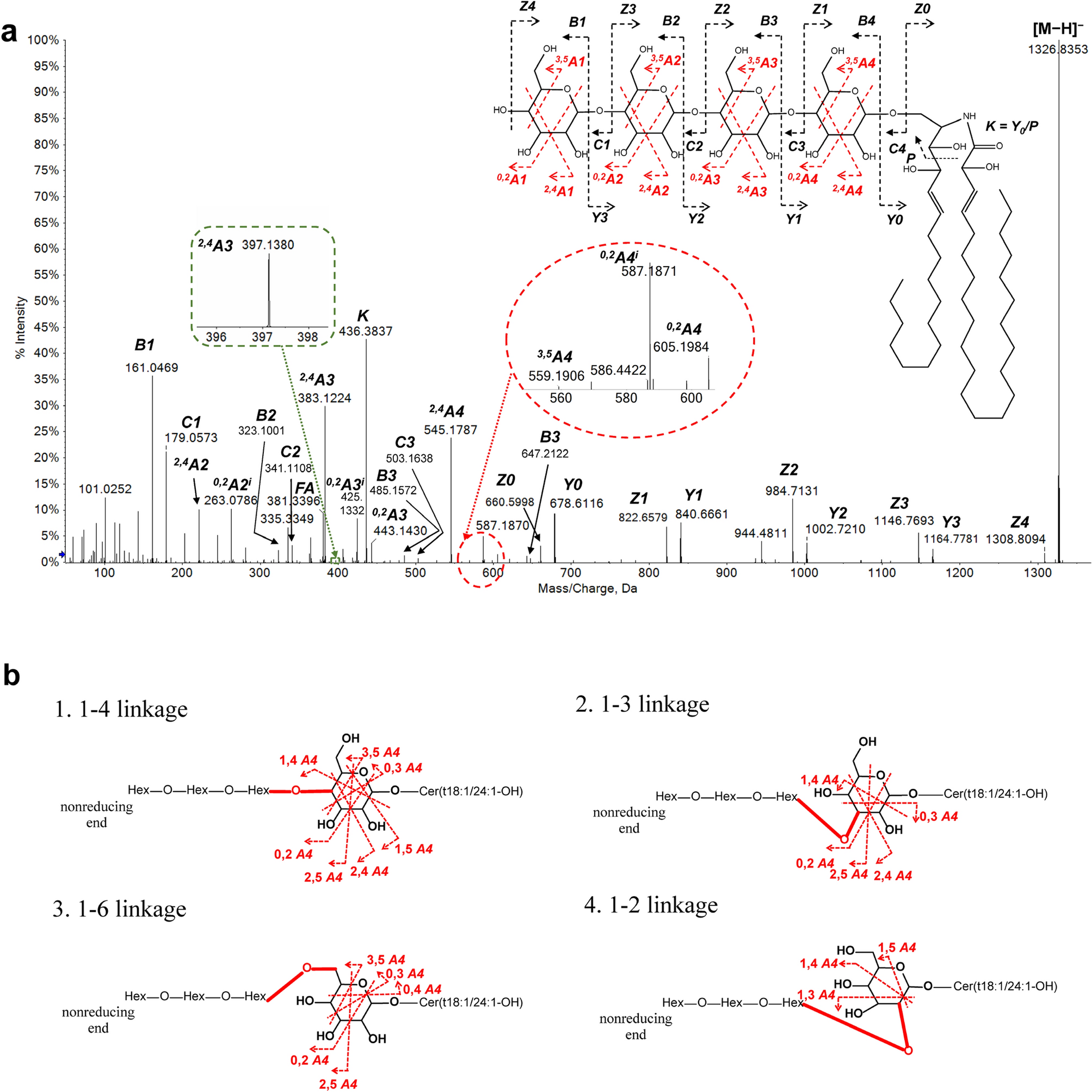

(a) MS/MS spectra of TetraHexCer(t18:1/24:1-OH) in ESI− mode and fragment nomenclature. (b) Theoritical cross-ring fragmentation pattern of the fourth hexose unit from the non-reducing end for each different linkage position (1 → 4, 1 → 3, 1 → 6, 1 → 2).
