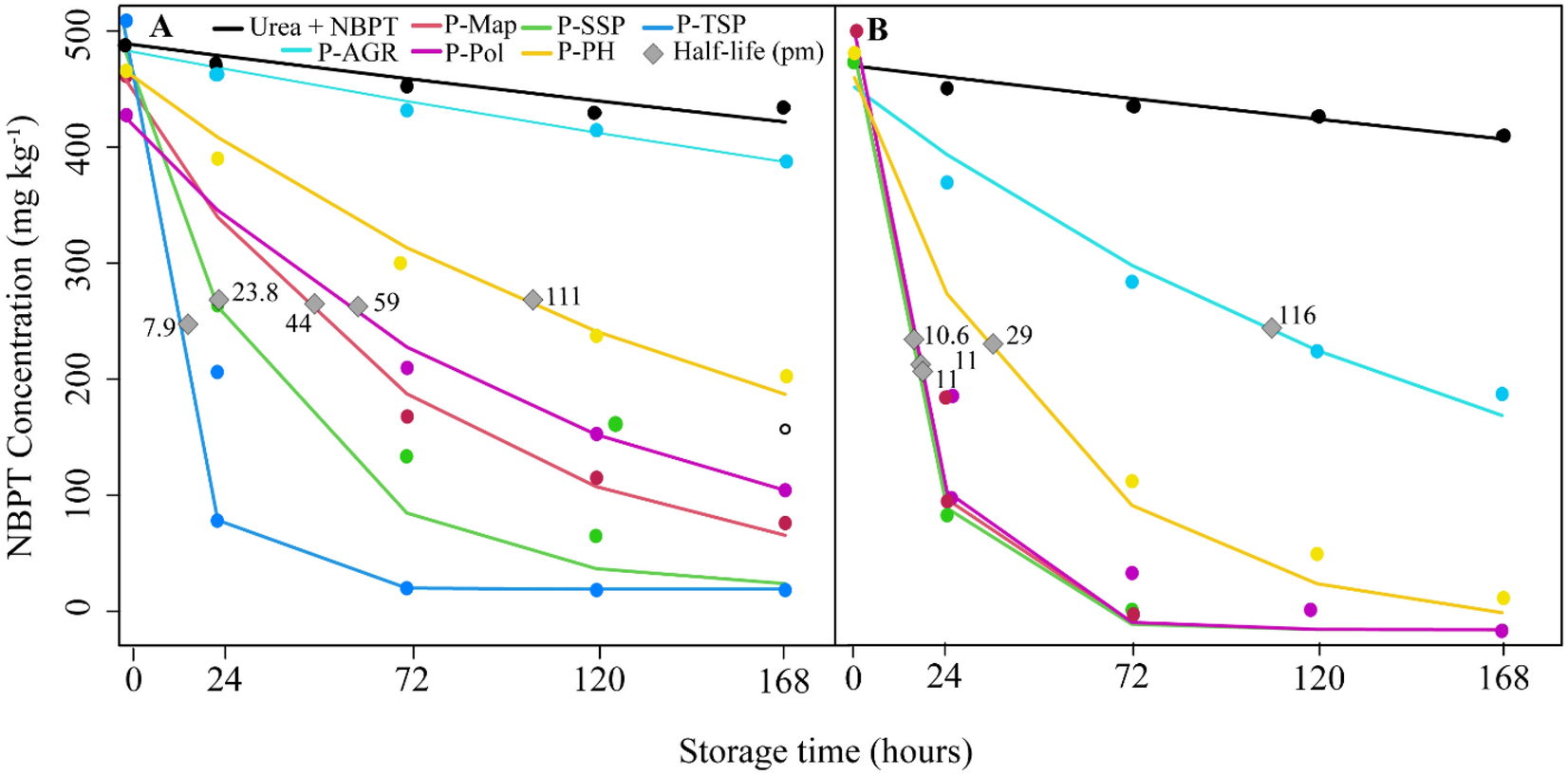

Figure 1

Variation of NBPT concentration over the storage period for conventional phosphated fertilizers and associated technologies at the ratios of 30 PF:70 NF (A) and 70 PF:30 NF (B), recorded at intervals of 0, 24, 72, 120, and 168 hours of storage.
