Figure 3 | Scientific Reports

Figure 3

From: Field evaluation of electrophysiologically-active dung volatiles as chemical lures for trapping of dung beetles

Figure 3

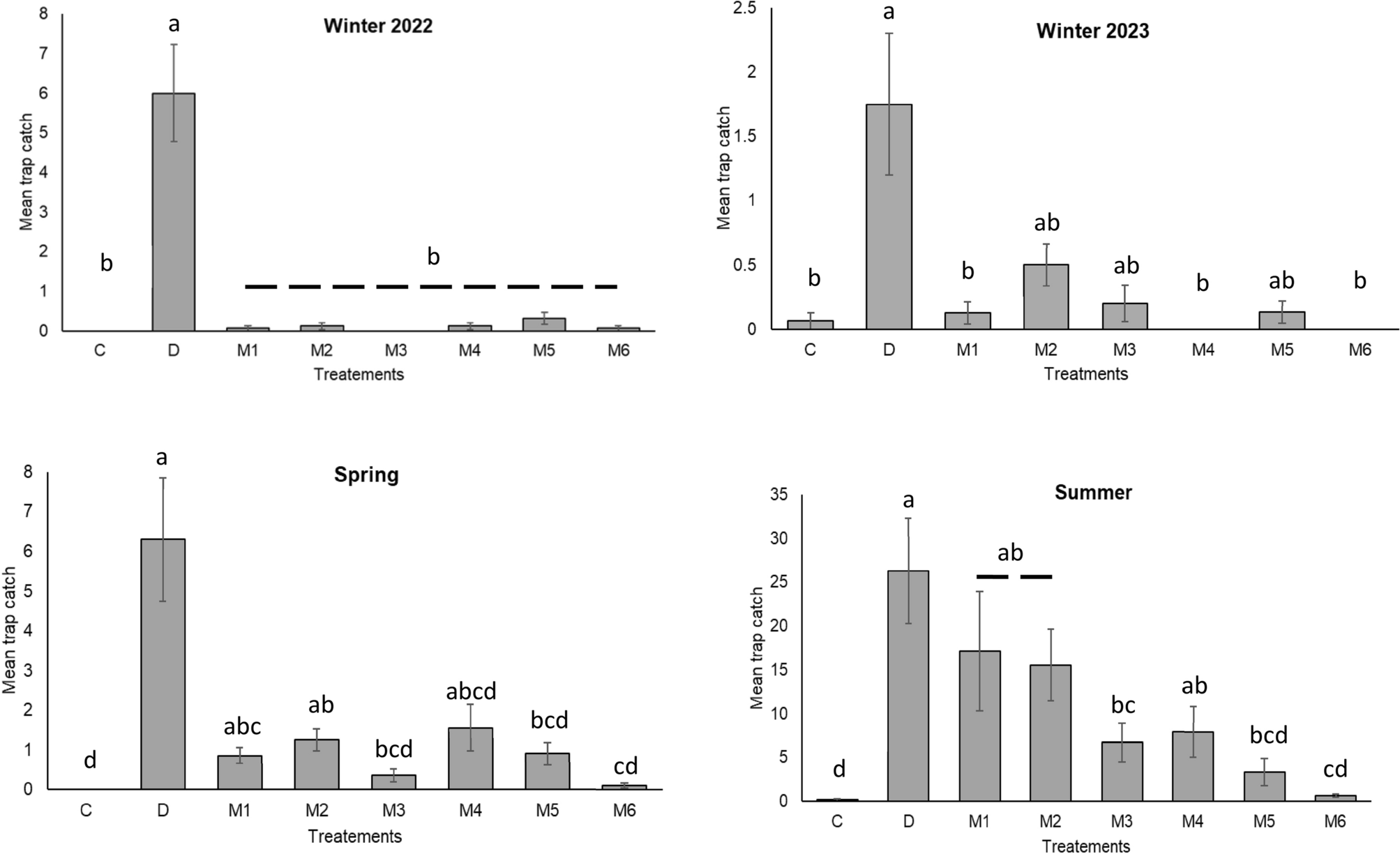

Mean trap catch (± SE) in winter, spring, and summer (Kruskal–Wallis, Dunn ‘s test). For all four sessions P < 0.001 as determined by Kruskal–Wallis one-way nonparametric analysis of variance. Bars accompanied by the same letters are not significantly different as determined by Dunn's all pairwise comparison test. Refer to Table S3 for species composition. n = 4. C—bait free, D—dung bait, M1—skatole + indole + phenol + butyric acid + butanone + p-cresol, M2—M1 + dimethyl sulphide + dimethyl disulphide, M3—M1 + eucalyptol, M4—M1 + toluene, M5—M1 + dimethyl sulphide + dimethyl disulphide + eucalyptol + toluene, M6—dimethyl sulphide + dimethyl disulphide + eucalyptol + toluene.
