Figure 1

From: Greedy routing optimisation in hyperbolic networks

Figure 1

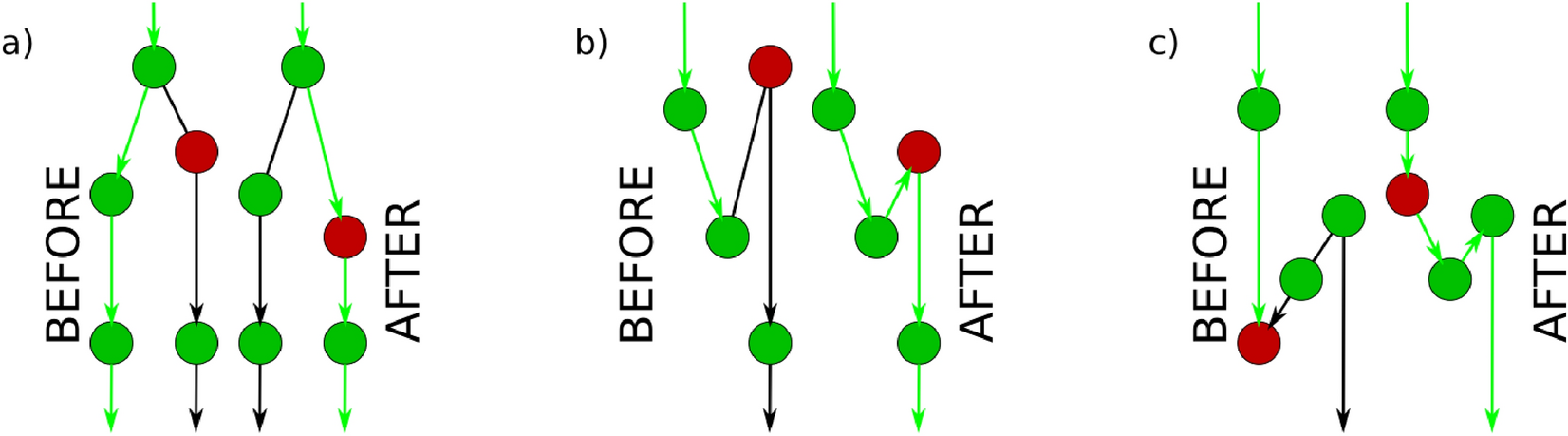

Possibly elementary changes in greedy routes when displacing a single node. In all panels, the target of the path (highlighted in green) is positioned at an arbitrarily large distance downward, and the displaced node is highlighted in red. Panel (a) shows the case of re-routing, whereas panels (b,c) display clogging and unclogging.
