Figure 4

From: MicroRNAs modulate immunological and inflammatory responses in Holstein cattle naturally infected with Mycobacterium avium subsp. paratuberculosis

Figure 4

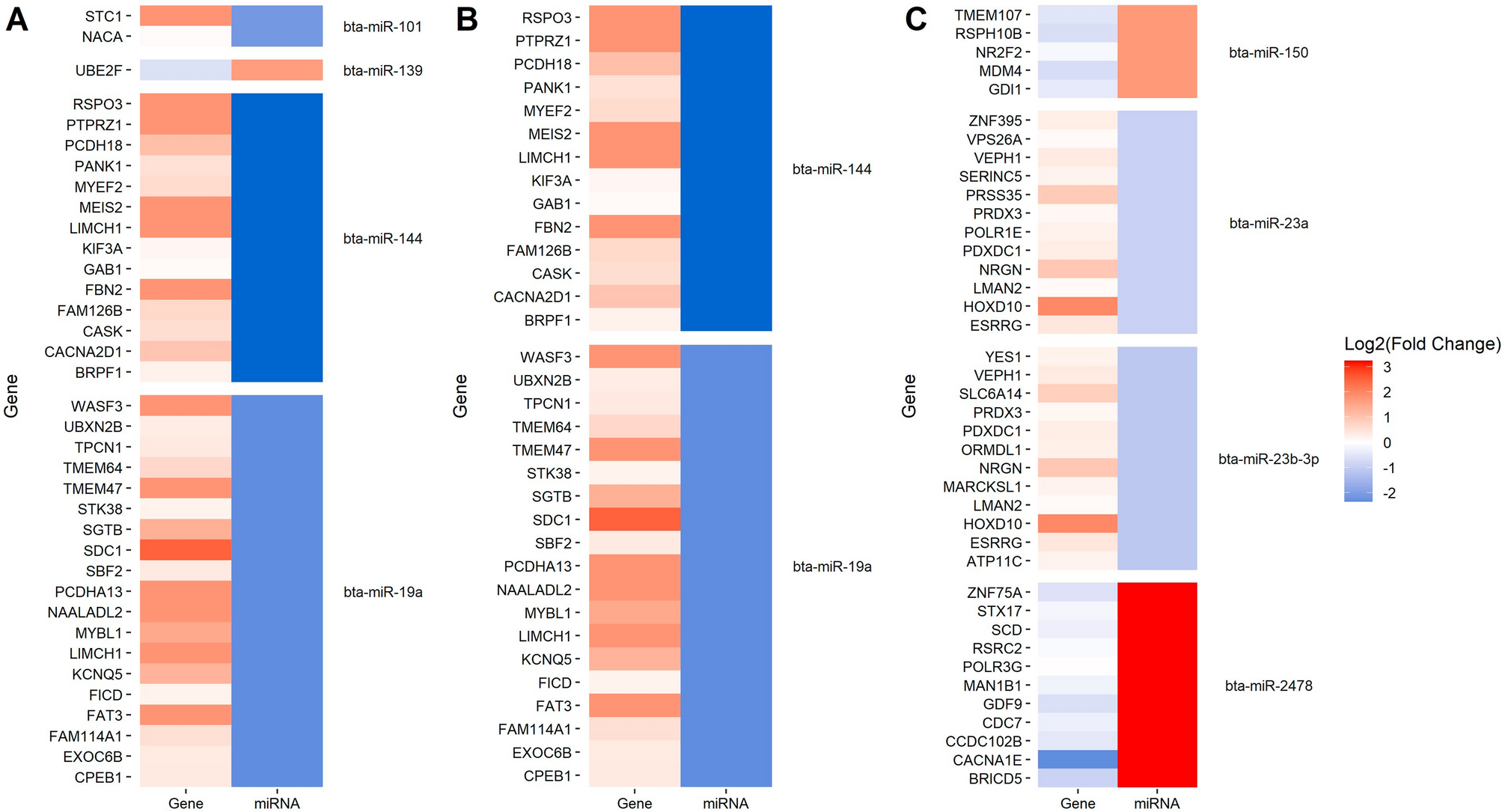

Negative correlations between miRNAs and predicted target mRNAs expression levels. Heatmaps representing changes in the expression of the differentially expressed miRNAs in peripheral blood samples in the comparisons: diffuse lesions vs controls (A) and diffuse vs focal lesions (B) along with the changes in expression of their predicted target mRNAs. (C) Heatmap representing changes in the expression of the differentially expressed miRNAs in ICV samples in the comparison focal vs controls along with the changes in expression of their predicted target mRNAs.
