Figure 3

From: Inter-study reproducibility of cardiovascular magnetic resonance-derived hemodynamic force assessments

Figure 3

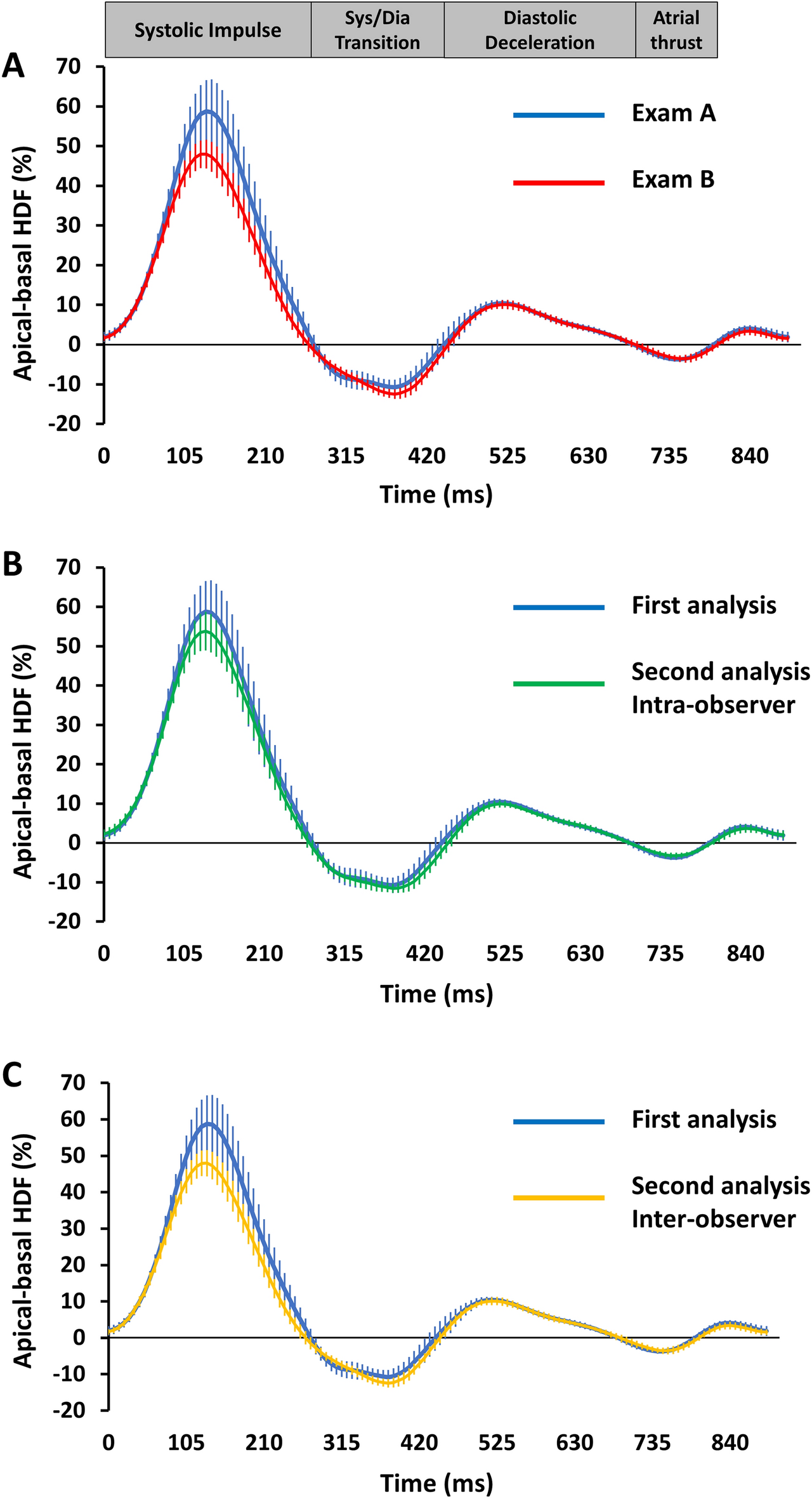

Hemodynamic force analyses profiles. Hemodynamic force (HDF) analyses profiles are displayed for both exams. The blue curve (first exam) and red curve (second exam) represent the respective average of the whole study group with the respective 95% confidence interval of the measurements (A). HDF analyses profiles for intra- (B) and inter-observer (C) measurements based on the first exam each representing the averages of the whole study group with the respective 95% confidence intervals (please see colour codes).
