Figure 2
From: Subcortical responses to music and speech are alike while cortical responses diverge

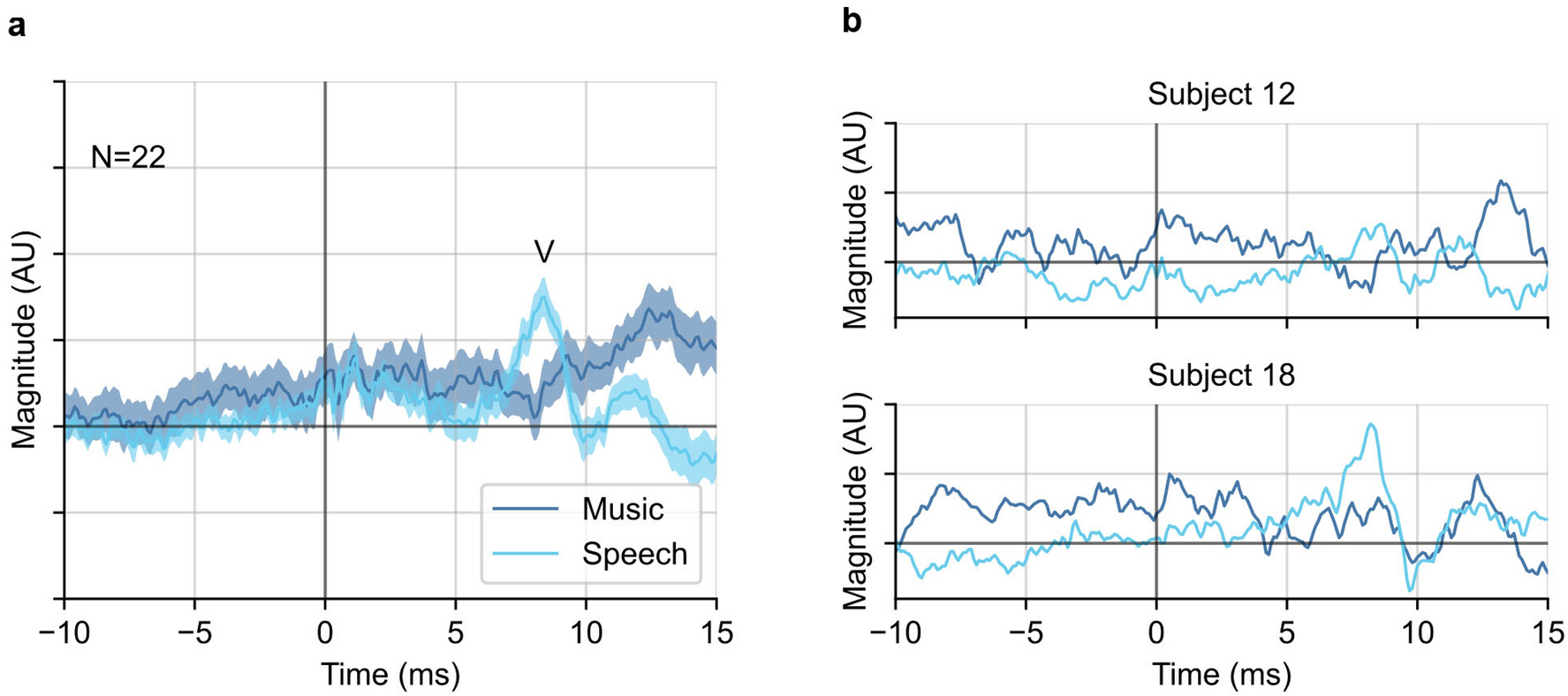

General music- and speech-evoked ABR waveforms using the half-wave rectified stimulus as the regressor in deconvolution. (a) The grand averaged general music- and speech-evoked ABR waveforms. Wave V in the speech response at 7.5 ms is annotated. The plotted waveforms were low-pass filtered at 1500 Hz. Shaded areas show ± 1 SEM (n = 22). (b) Two example individual subject responses.
