Figure 9
From: Partitioning surface wave propagation on reconfigurable porous plane

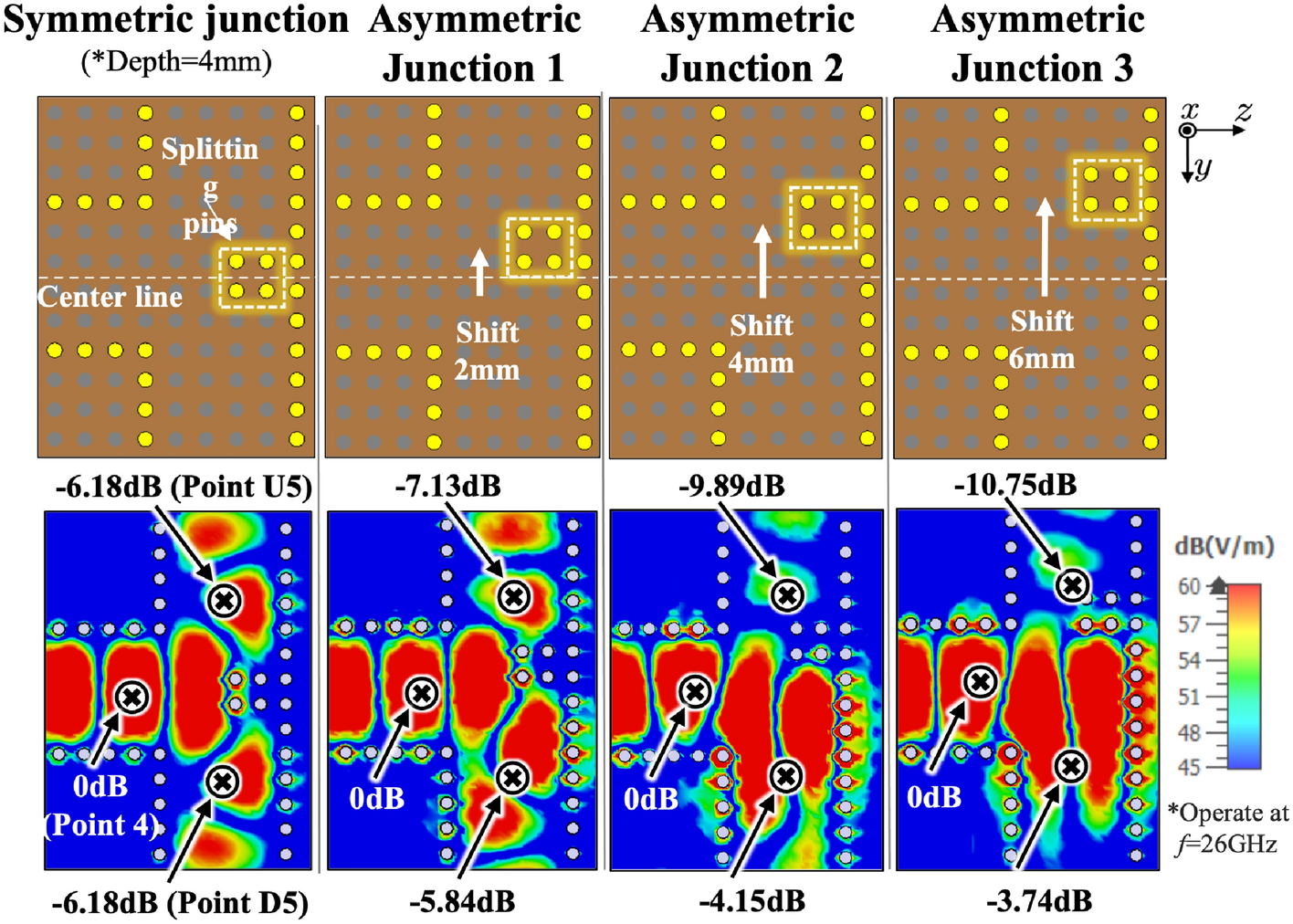

The geometry of symmetric junction and asymmetric junctions 1, 2, 3 with the splitting pins shifted from 2 to 6 mm in the \(-y\)-direction and their corresponding E-field at Points 4, D5, U5 in three directions of the T-junction at 26 GHz.
