Figure 9
From: Landmark-based registration of a cochlear model to a human cochlea using conventional CT scans

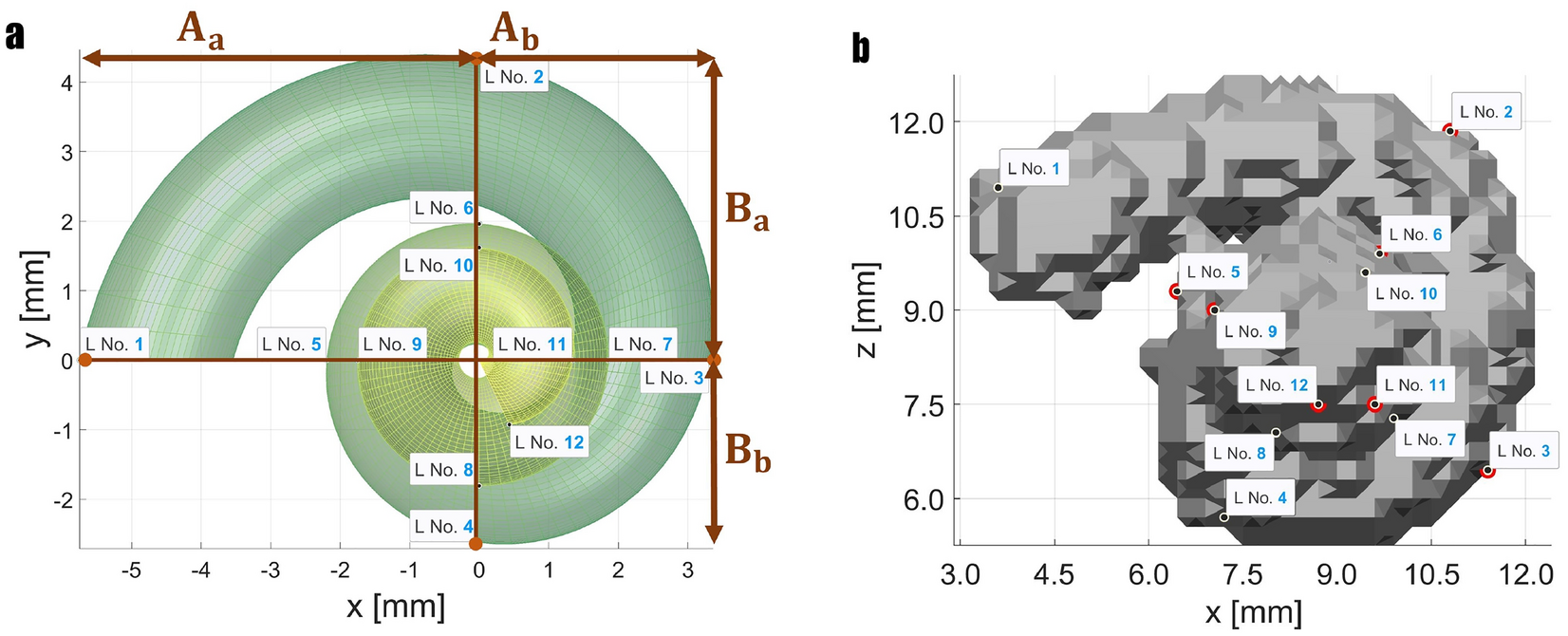

a Cochlear model9 with mean values. The cochlea can be divided into four quadrants, the length of each quadrant is given by the parameters \(A_a\), \(A_b\), \(B_a\), and \(B_b\). Landmark positions are set every \(90^{\circ }\) on the cochlear model (a) and on the segmented human cochlea, which is slightly rotated here compared to the model (b), as in Case 1. There is an unambiguous assignment of the landmark numbers.
