Figure 2
From: Synchronization of non-smooth chaotic systems via an improved reservoir computing

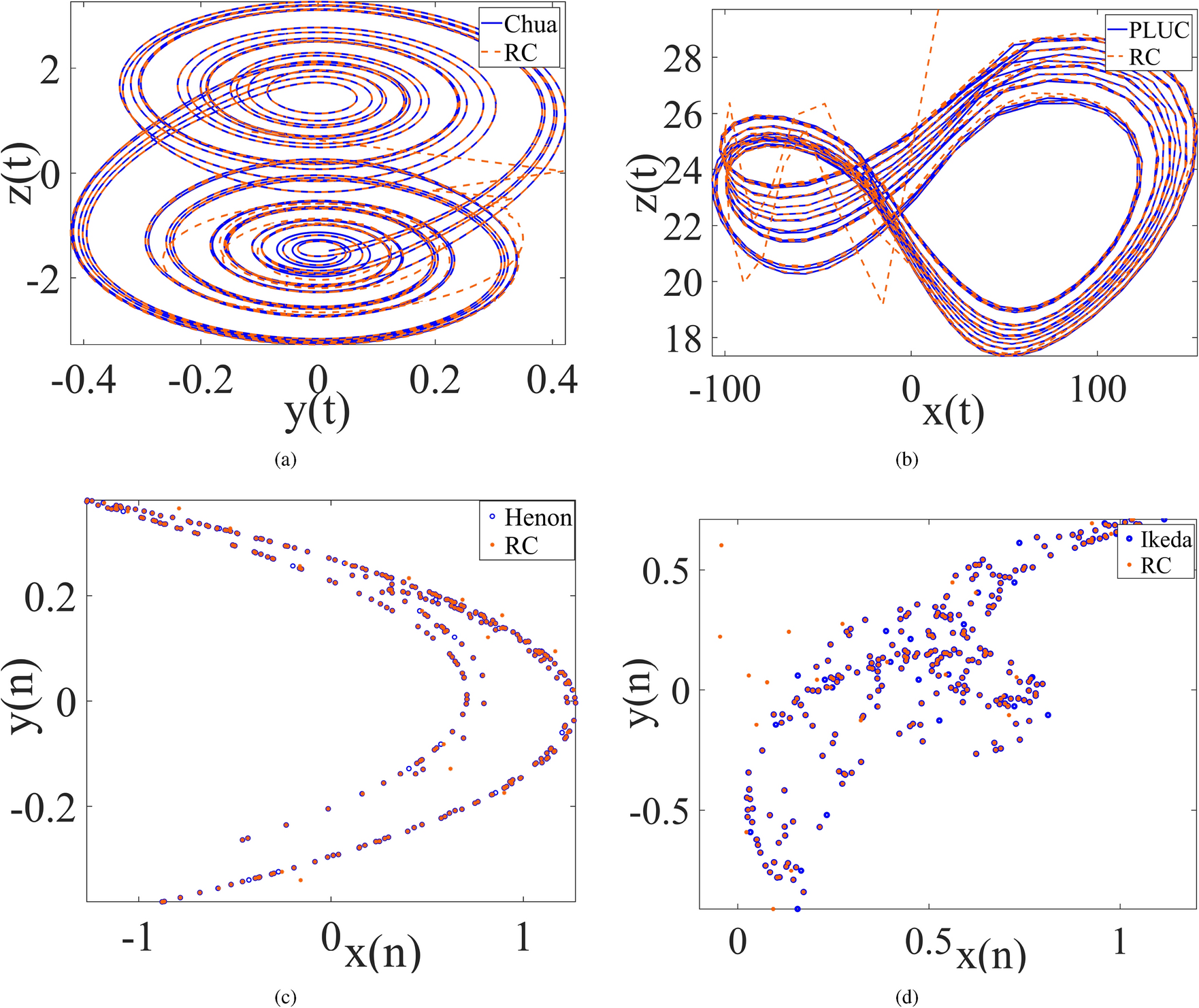

The phase diagram of synchronization state evolution between the chaotic drive system and its trained RC response system where x (y) component is the drive variable in a,c,d (b). (a) Chua system, (b) PULC system, (c) Hénon system, (d) Ikeda system.
