From: Toxicity of ZnFe-SO4 layered double hydroxide in Tetradesmus obliquus and evaluation of some physiological responses of the microalgae for stress management

Figure 5

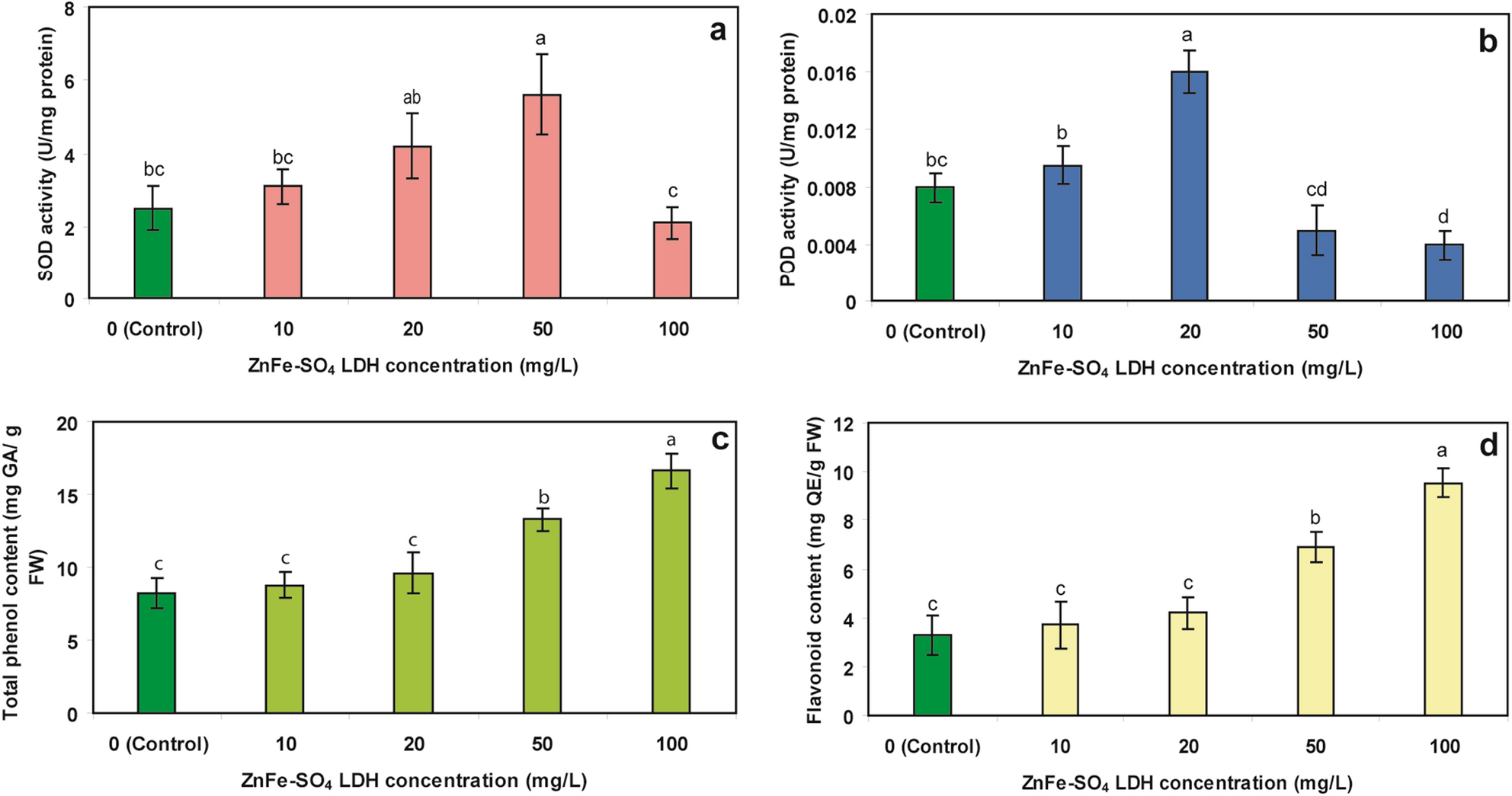

(a) SOD and (b) POD activities and the content of (c) total phenol and (d) flavonoids in control microalgae and the microalgae exposed to different concentration of ZnFe-SO4 LDH (Mean ± SD, n = 3, different letters in each part of the figure showed statistically significant difference (p < 0.05)).
