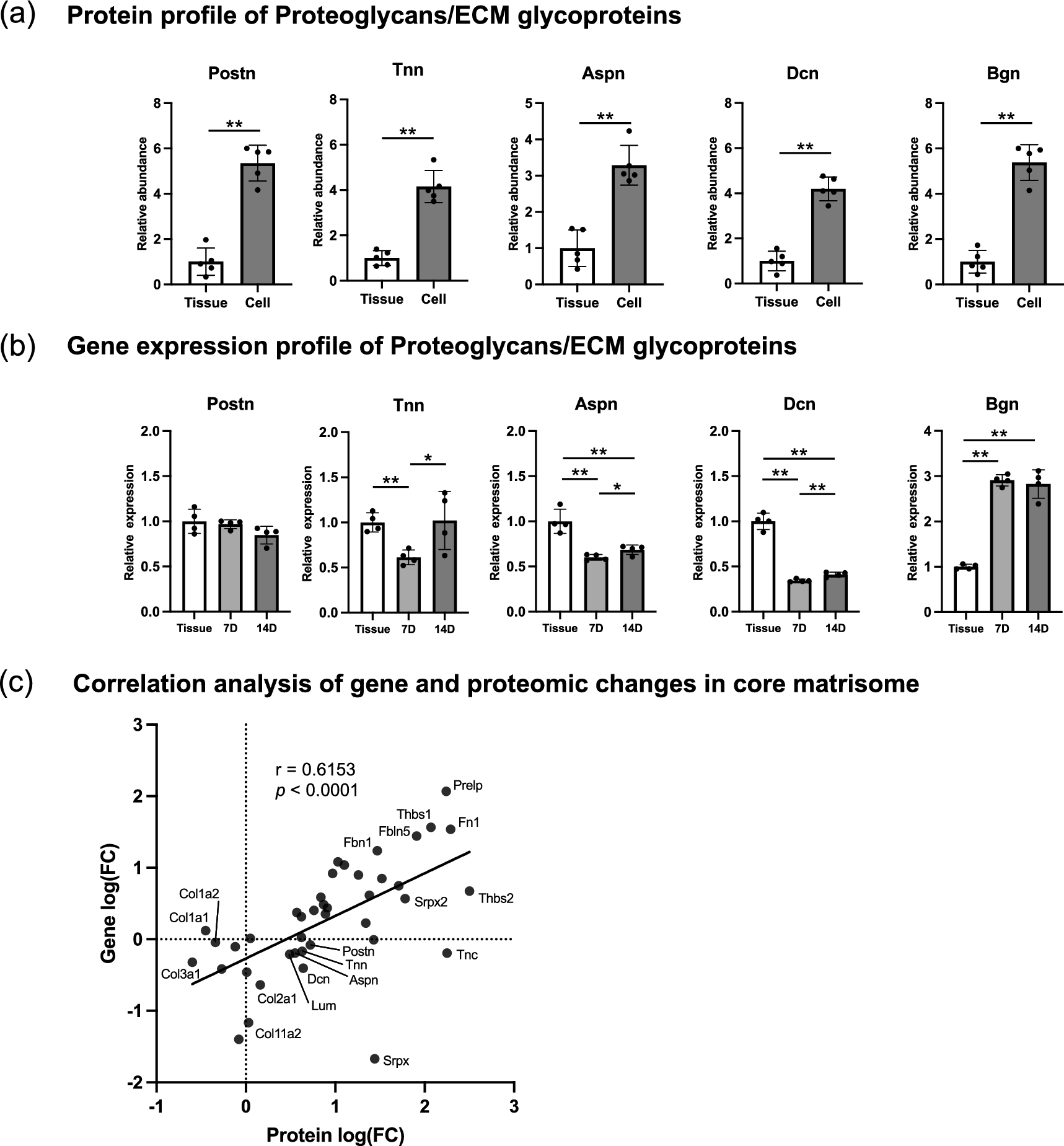

Figure 6
From: Multiomics analysis of cultured mouse periodontal ligament cell-derived extracellular matrix
Protein and gene expression of proteoglycans/ECM glycoproteins in cultured mouse PDLCs and PDL tissue. (a) Relative protein abundance of proteoglycans/ECM glycoproteins in the Cell ECM compared with that in the Tissue ECM. (b) Relative gene expression of proteoglycans/ECM glycoproteins in cultured PDLCs compared with that in cells from native PDL tissues. (c) Correlation analysis of gene and proteomic changes of the core matrisome in cultured PDLCs. 7D, cultured PDLCs on day 7; 14D, cultured PDLCs on day 14. *p < 0.05, **p < 0.01.
