Figure 10

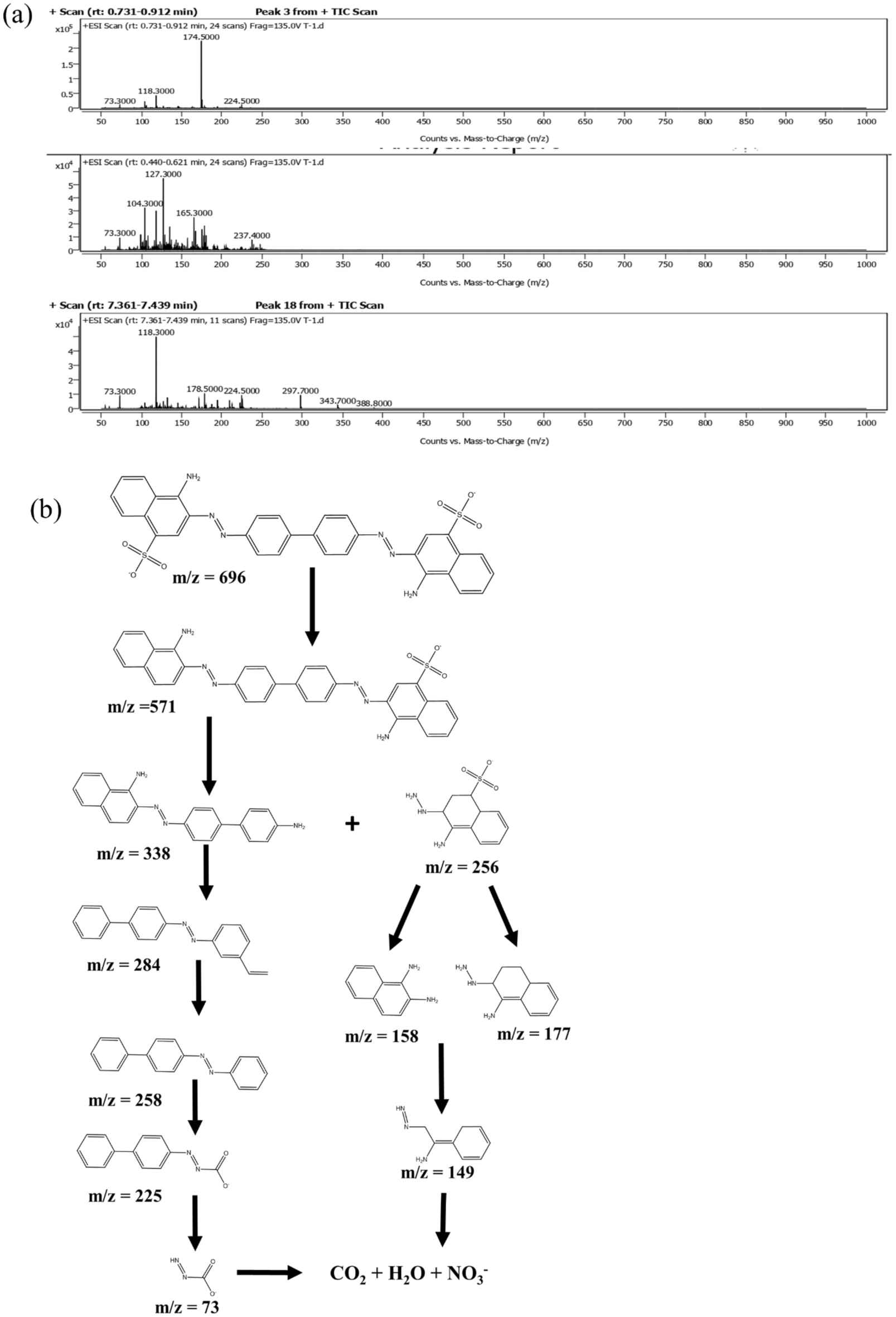

(a) Mass spectra of the photodegradation of CR at the intermediate stage and (b) plausible mechanism of the degradation of CR dye.
Figure 10 | Scientific Reports
(a) Mass spectra of the photodegradation of CR at the intermediate stage and (b) plausible mechanism of the degradation of CR dye.
