Figure 2
From: Flexible thermoelectrics in crossed graphene/hBN composites

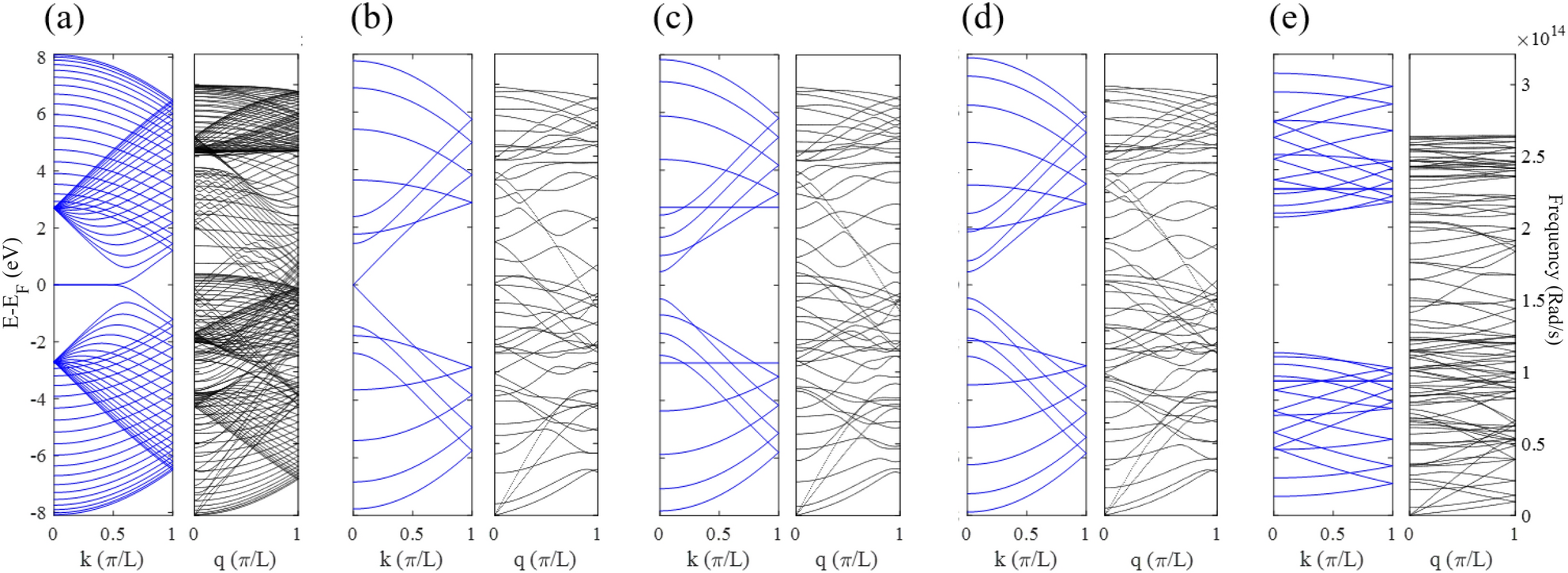

Electronic and phononic dispersions for all nanoribbons in the structures investigated, (a) 38-ZGNR, (b) 8-AGNR, (c) 9-AGNR, (d) 10-AGBR, and (e) 9-ABNNR.
Figure 2 | Scientific Reports
