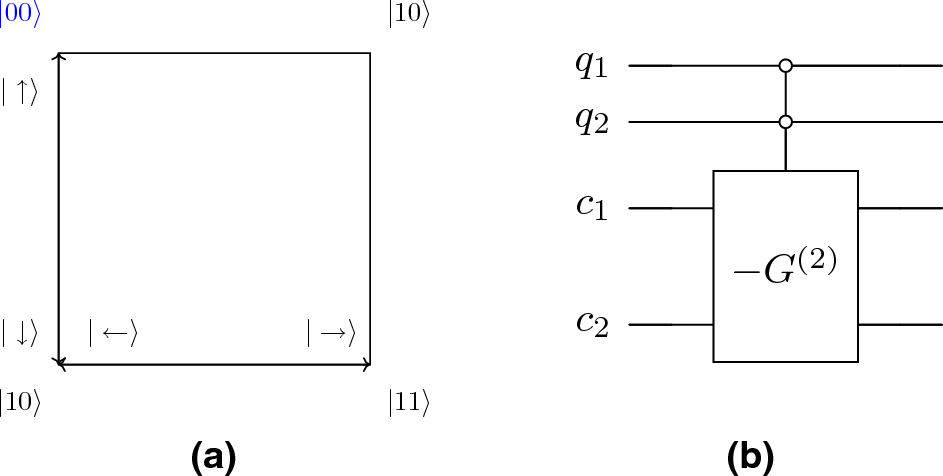

(a) The qubit space for \(2\times 2\) lattice along with coin basis. (b) Quantum circuit implementation of Oracle for \(2\times 2\) lattice. The Pauli X operator is used to flip the bit to implement control operation over \(|00\rangle \) position basis.
