Figure 4
From: Room temperature wafer bonding through conversion of polysilazane into \(\hbox {SiO}_{2}\)

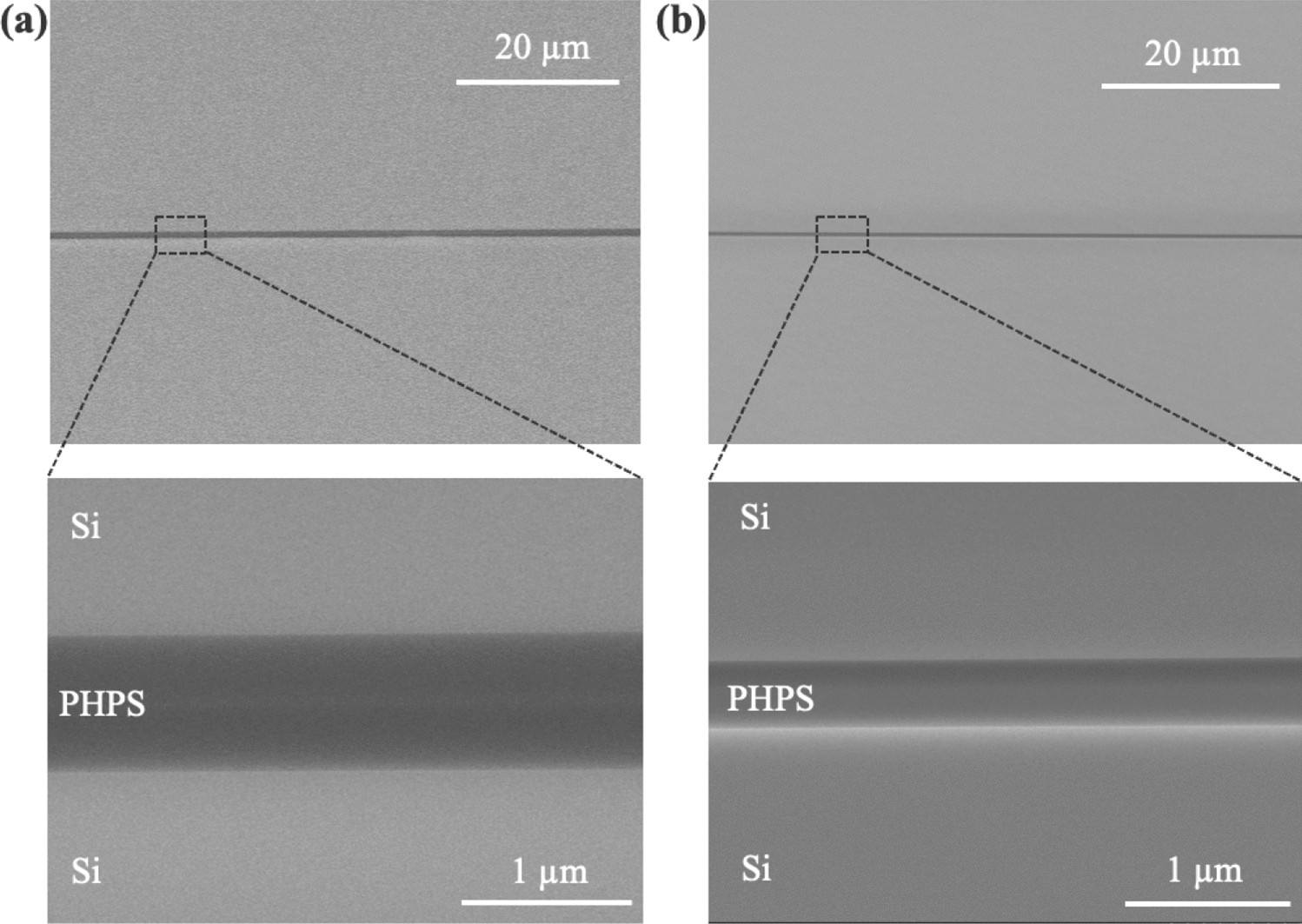

Cross-sectional SEM observation of the bonding interface of (a) both side PHPS layers with one side plasma treatment and (b) one side PHPS layer with plasma treatment.
