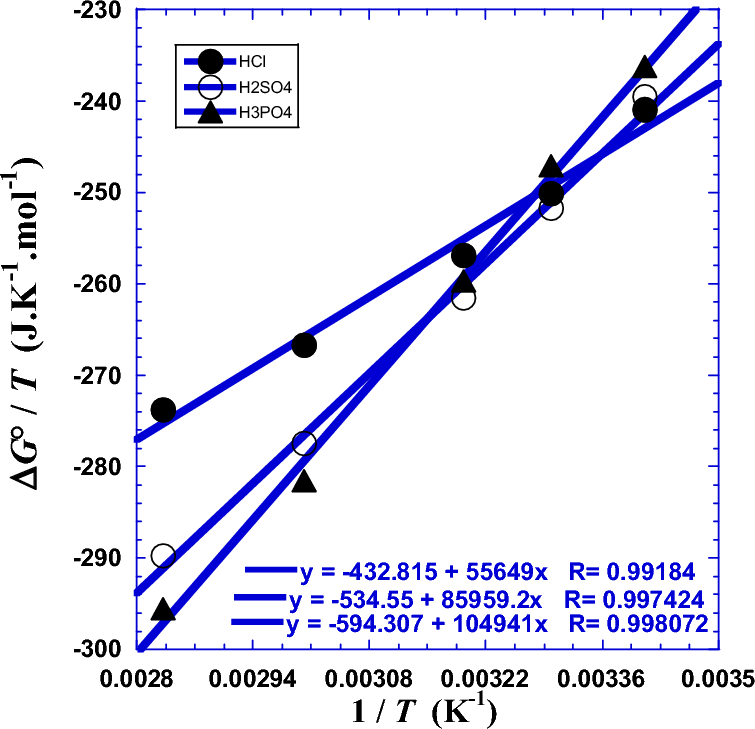

Figure 6

Variation of ΔG*/T against the inverse of the absolute temperature (1/T) for glassy Ni_82.3Cr₇Fe₃Si_4.5B_3.2 alloy corrosion determined from impedance measurements in previous work¹ for the three polyacids HCl, H₂SO₄ and H₃PO₄ at atmospheric pressure. (●): HCl, (○): H₂SO₄, (▲): H₃PO₄. Solid line: linear regression.
