Figure 5

From: Transcriptomic and proteomic analysis of tumor suppressive effects of GZ17-6.02 against mycosis fungoides

Figure 5

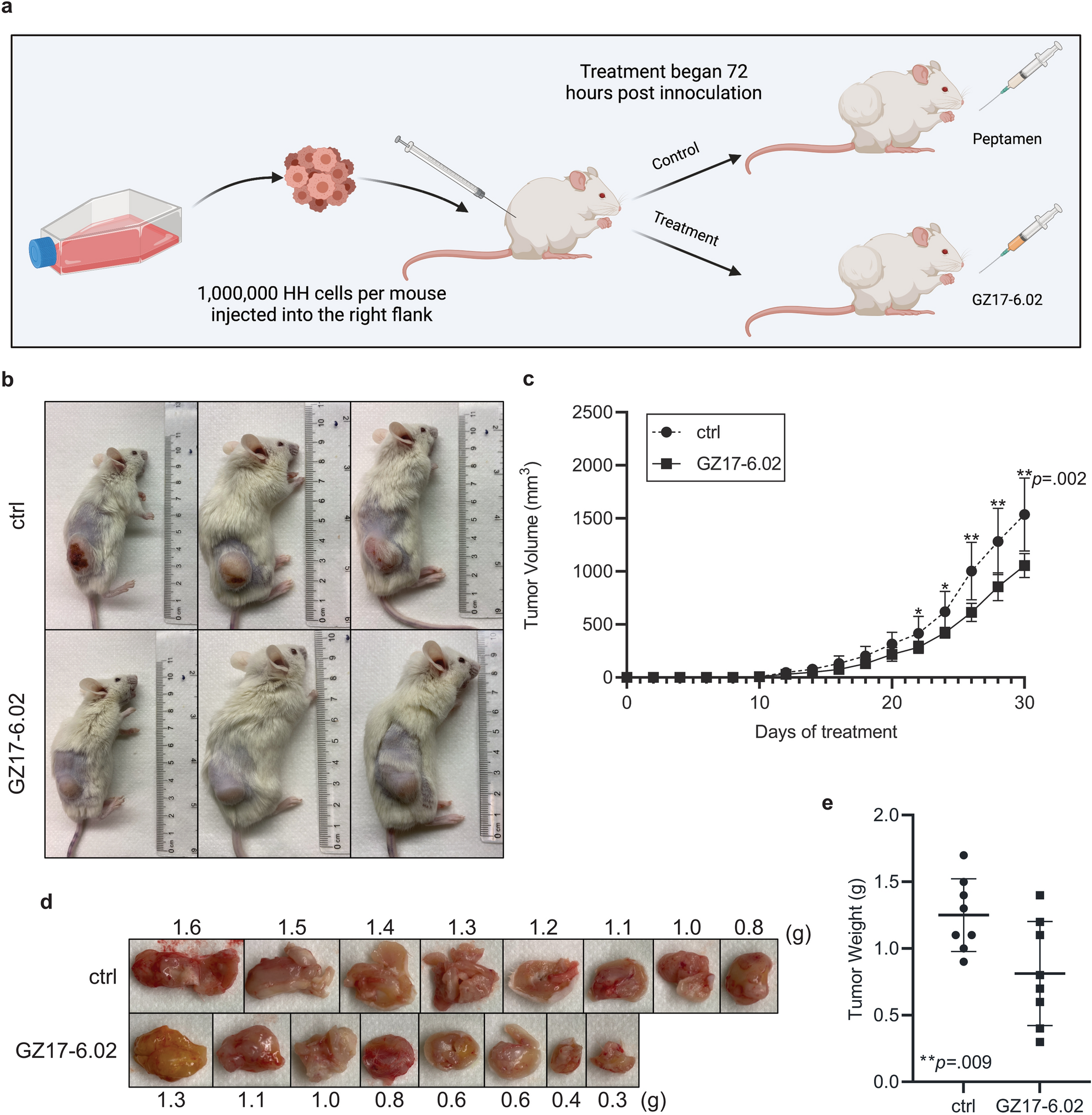

GZ17-6.02 inhibits MF growth in vivo. (A) Overview of experimental design. (B) Representative images of control and GZ17-6.02 treated mice after 30 days of treatment. (C) Tumor volume over time in control and GZ17-6.02 treated mice. (D) Representative images of tumors extracted from mice after 30 days of treatment. (E) Tumor weight for control and GZ17-6.02 treated mice. *p < .05; **p < .01; ctrl, control.
