Figure 2 | Scientific Reports

Figure 2

From: Minimizing artifact-induced false-alarms for seizure detection in wearable EEG devices with gradient-boosted tree classifiers

Figure 2

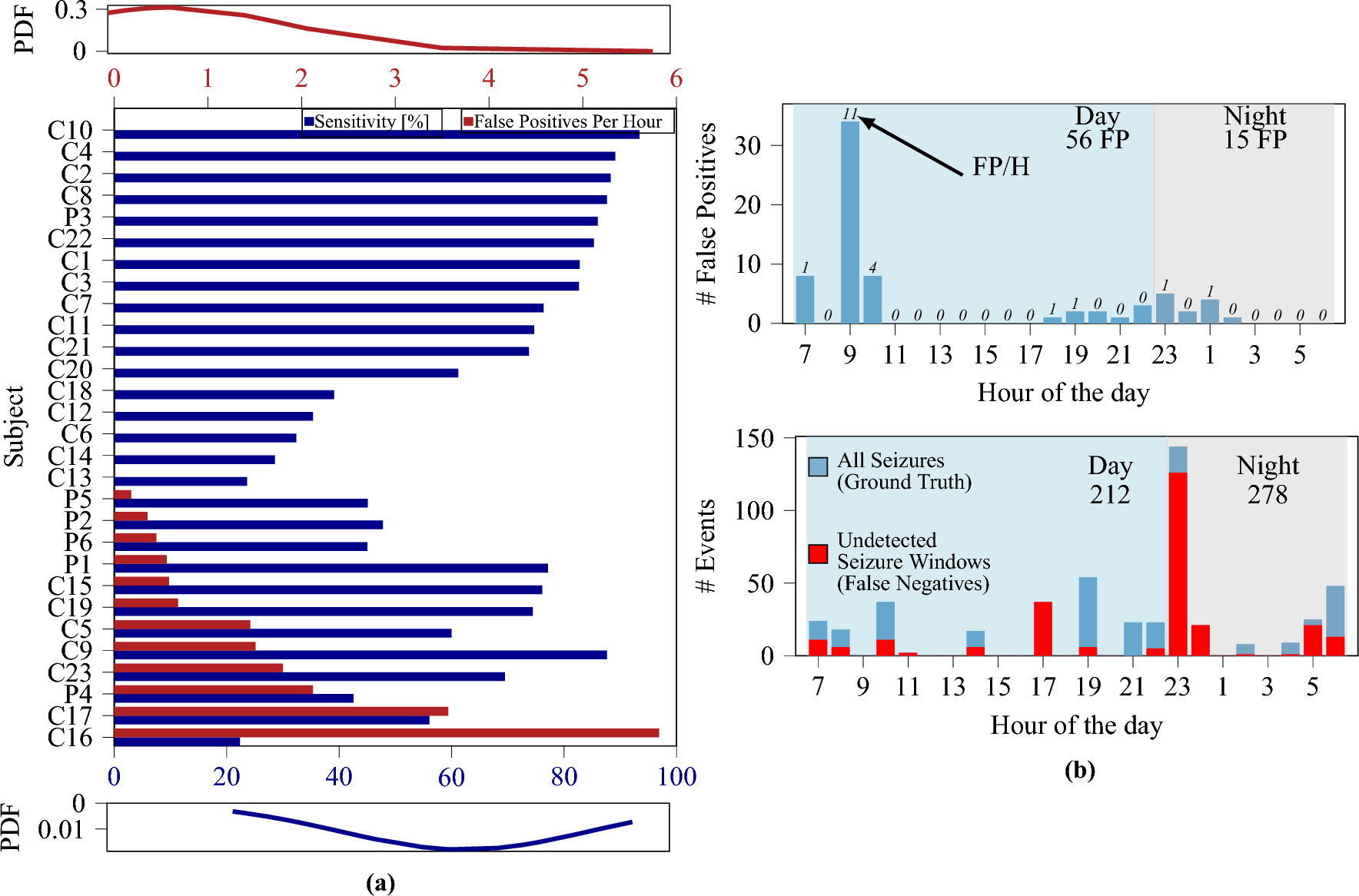

(a) Sensitivity and FP/h histogram of all considered patients. Labels “C” and “P” indicate patients of the CHB-MIT and PEDESITE datasets, respectively. Approximately \(60\%\) of patients exhibited zero false alarms. Top/bottom insets: probability density function (PDF) for the FP/h and sensitivity metrics. (b) Distribution of FP (left) and all/missed seizures (right) over hours of the day. Dataset: PEDESITE.
