Figure 1

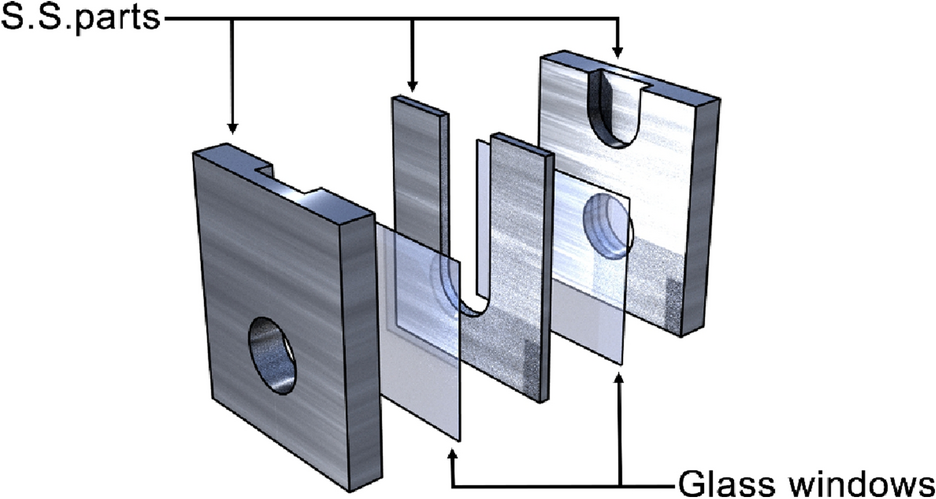

Structure of microcell. Three stainless-steel (S.S.) parts and two glass windows were glued together. The dimensions of a finished cell were 6 mm (W) × 7 mm (H) × 2.36 mm (D).
Figure 1 | Scientific Reports
Structure of microcell. Three stainless-steel (S.S.) parts and two glass windows were glued together. The dimensions of a finished cell were 6 mm (W) × 7 mm (H) × 2.36 mm (D).
