Figure 12

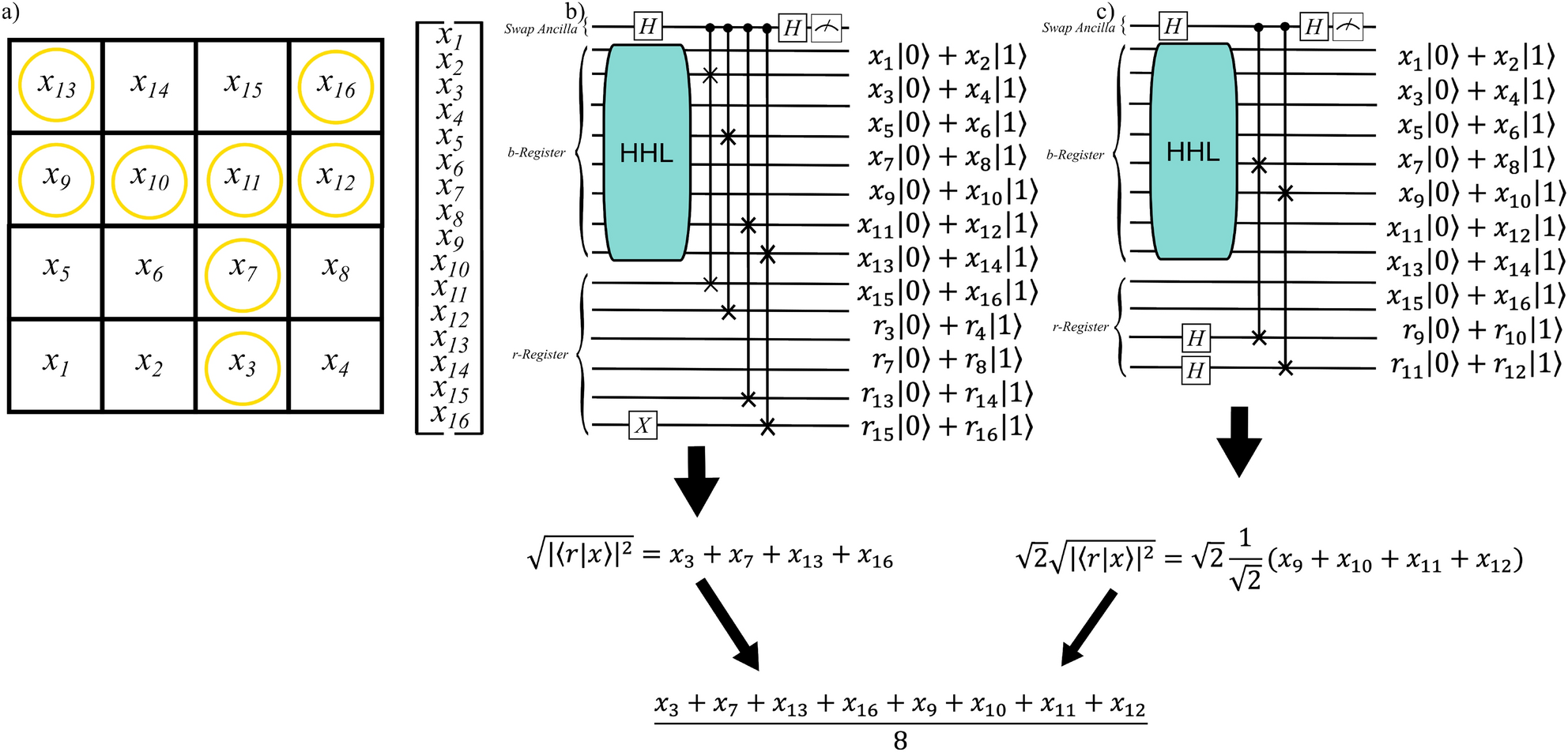

Subfigure (a) is a \(4\times 4\) discretized region with a pitchfork fracture marked by yellow circles. Subfigure (b) illustrates the two circuits needed to compute the average pressure in a series of arbitrarily-selected nodes, by building r-registers as described above.
