From: Thermodynamics and electronic structure of adsorbed and intercalated plumbene in graphene/hexagonal SiC heterostructures

Figure 2

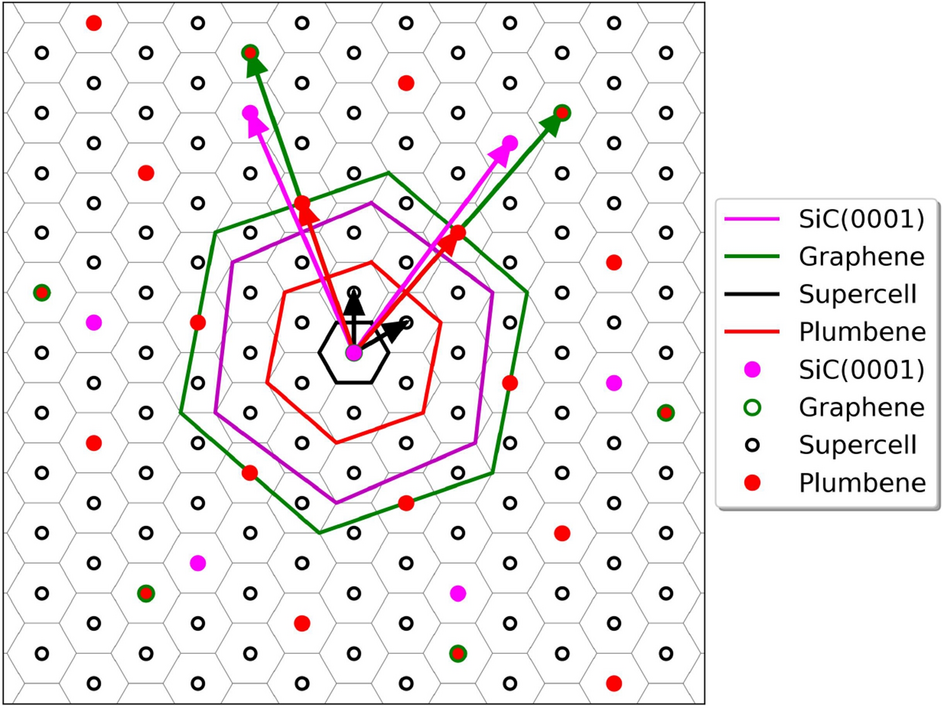

Arrangement of the BZs of the supercell of the heterostructure and of the \(1 \times 1\) unit cells of the constituent layers. The reciprocal basis vectors, the BZs of the primitive \(1 \times 1\) cells of graphene (green), plumbene (red) and SiC(0001) (magenta hexagons) and the BZ of the supercell (black and grey hexagons) are shown. The size and the orientation of the BZs follow the geometry description that has been exposed in the text.
