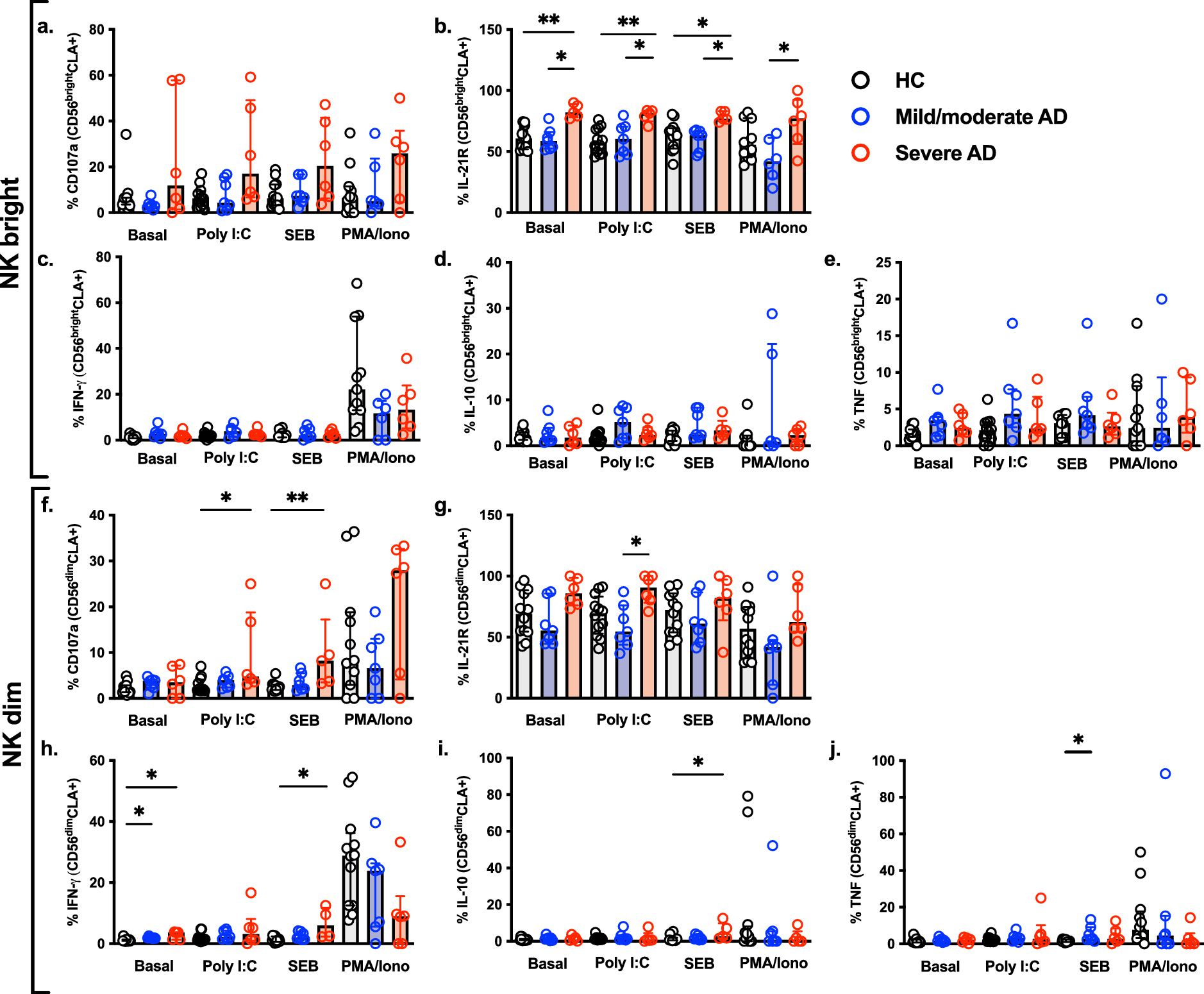

Figure 2
From: Outlining the skin-homing and circulating CLA+NK cells in patients with severe atopic dermatitis
Effector molecules in CLA + NK subsets upon in vitro stimulation. PBMCs were stimulated with TLR3 agonist, SEB or PMA/Ionomycin for 20 h. The frequency of CD107a, IL-21R, IFN-γ, IL-10 and TNF was analyzed in NKCD56brightCD16- (a–e), NKCD56dimCD16+ (f–j) CLA+ cell populations. HC (n = 12), mild/moderate AD (n = 7) and severe AD (n = 6). Data was plotted as a median with an interquartile range. *p < 0.05 and **p < 0.01.
