Figure 3

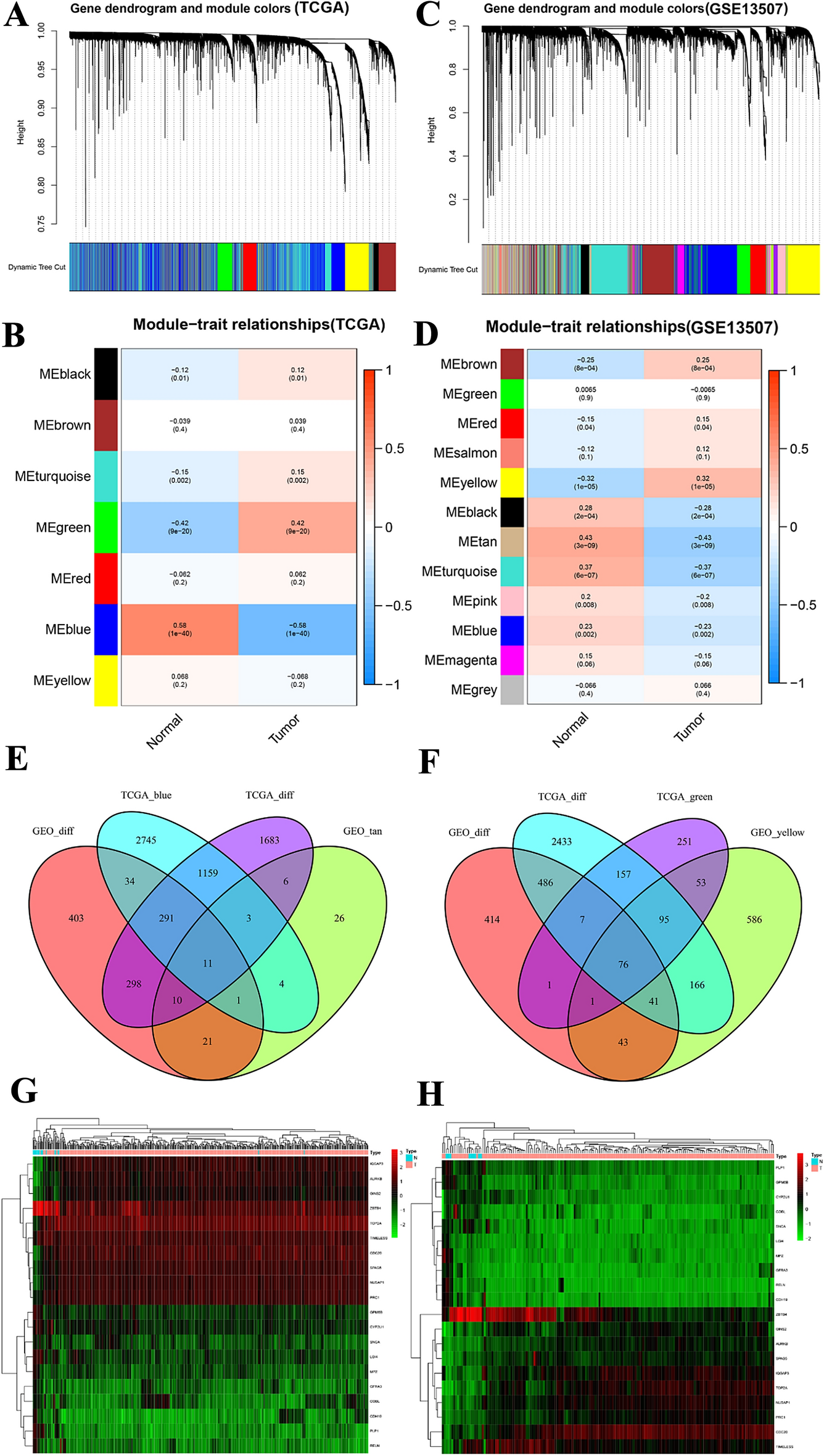

The relationship between modules and clinical features of bladder cancer in the TCGA-BC dataset (A,B) and GSE13507 dataset (C,D). (A) Gene clustering tree (dendrogram) based on hierarchical clustering of adjacency-based dissimilarity values. (B) Correlations between modules and clinical features (tumour and normal). (C) Gene clustering tree (dendrogram) based on hierarchical clustering of adjacency-based dissimilarity values. (D) Correlations between modules and clinical features (tumour and normal). Venn diagram of DEGs and genes in co-expression modules with differential expression in the normal group (E) and the tumour group (F). Expression heatmap of the top overlapping 20 genes in the TCGA dataset (G) and the GEO dataset (H).
