Figure 8
From: The role of strategic visibility in shaping wayfinding behavior in multilevel buildings

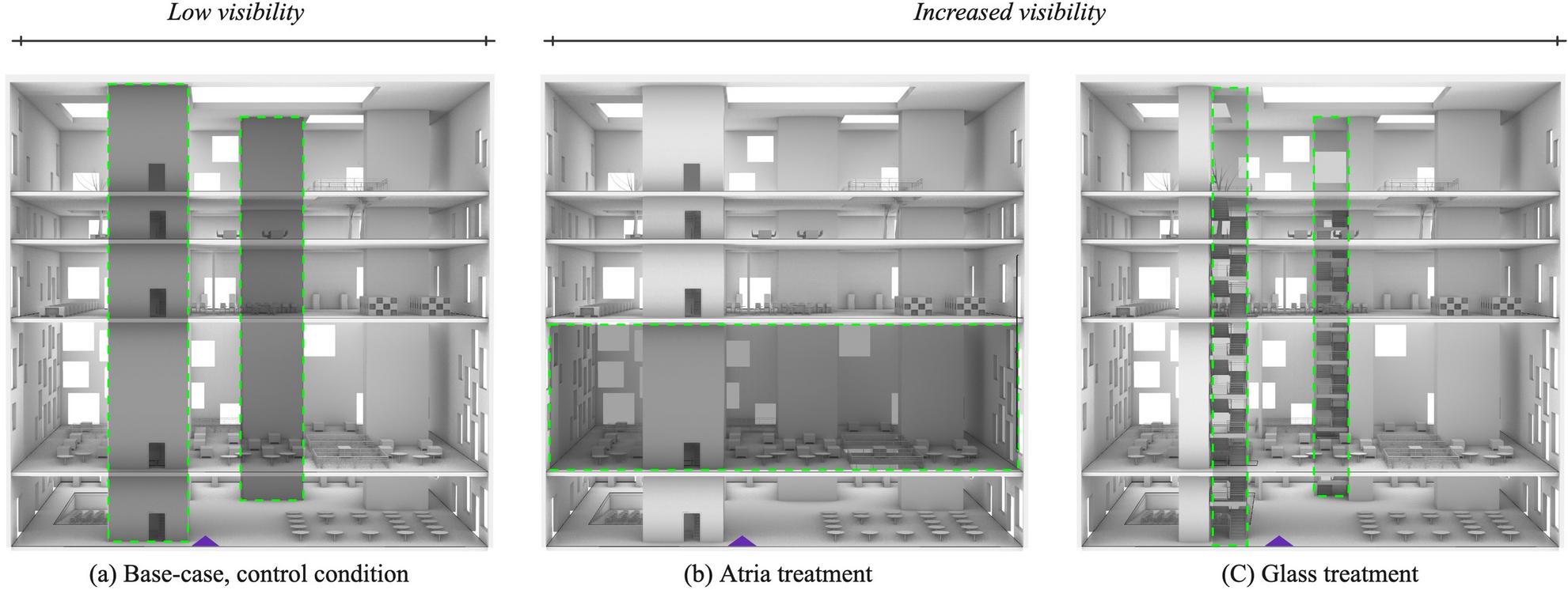

Perspective elevations for the three building conditions with architectural variations highlighted in a dashed green line. Base-case, the control condition has the lowest visibility with the staircases hidden behind concrete walls and no atria on the second floor. The Atria and Glass treatments increase visibility either between the first and second floor by means of 6 atria (Atria) or towards strategic elements such as the staircases by removing the concrete enclosure on both circulation cores to become transparent (Glass). Legend: Purple triangle: Origin for all tasks.
