From: Electrically-driven modulation of flow patterns in liquid crystal microfludics

Figure 2

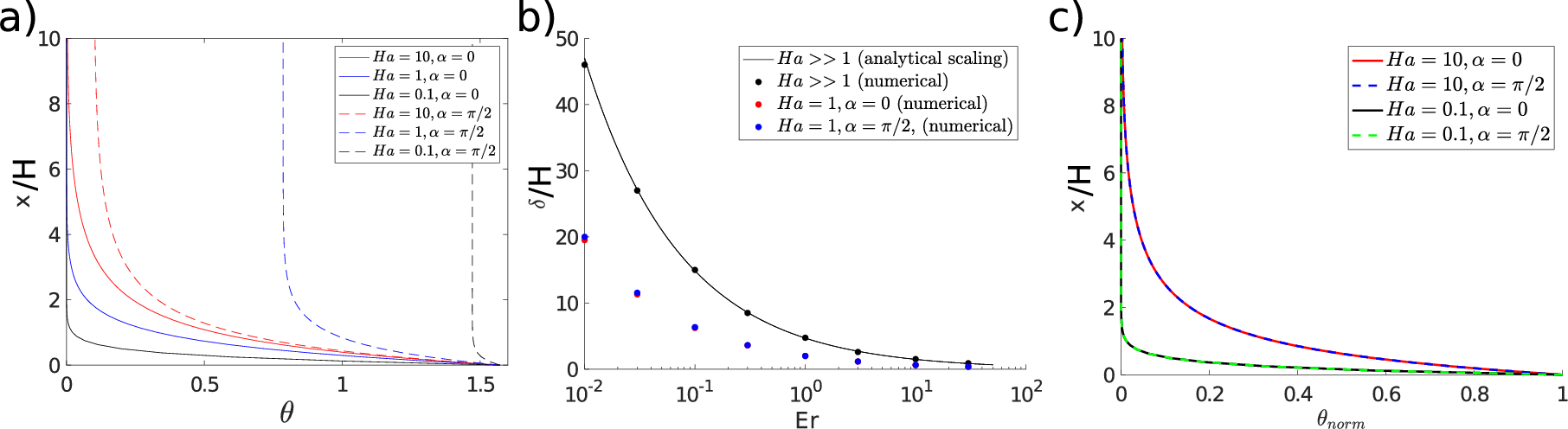

(a) Spatial variation of the director angle for different Ha and \(\alpha \) at \(Er=1\); (b) boundary layer thickness (\(\delta \) is measured as the layer width where 95% variation of the director angle occurs) as a function of Er; (c) normalised director angle for different Ha and \(\alpha \) at \(Er=1\). \(\frac{\partial u}{\partial y}=1\) throughout all simulations for simplicity.
