Figure 3
From: Electrically-driven modulation of flow patterns in liquid crystal microfludics

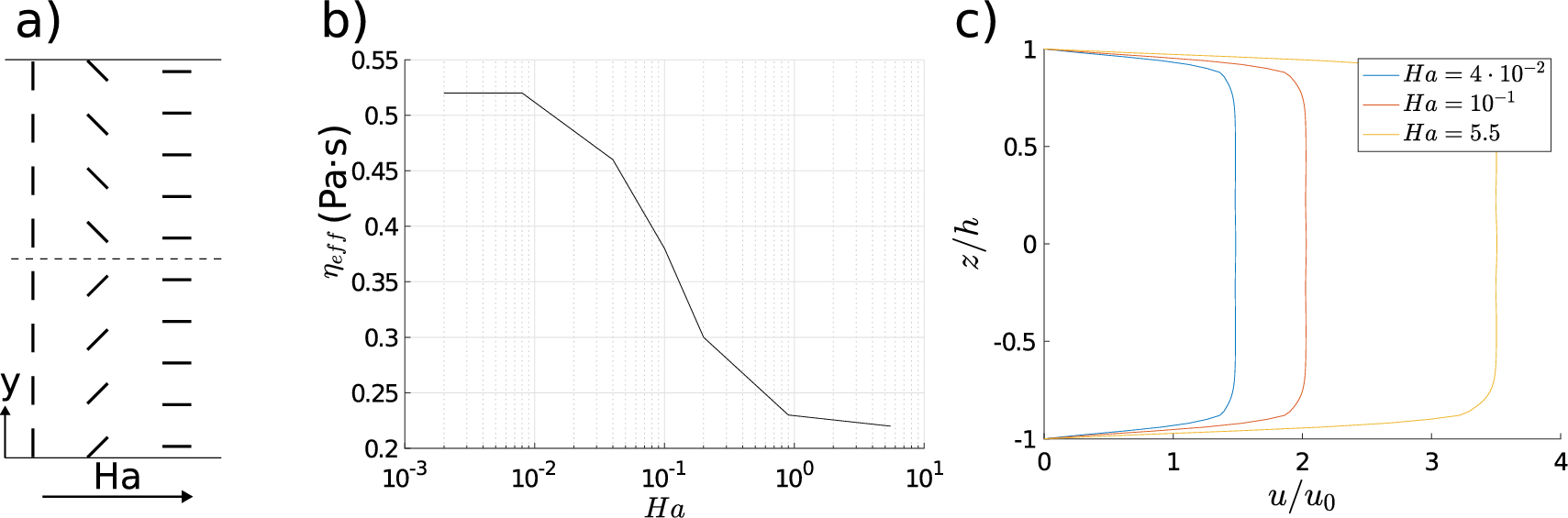

(a) Schematic depiction of director arrangement depending on the Hartman number (increasing Ha to the right); (b) effective viscosity (\(\text {Pa} \cdot \text {s}\)) as a function of the Hartman number; (c) Velocity profile at \(y=0\) for a range of Hartman numbers. \(Er=100\) throughout all simulations.
