Figure 2
From: Correction of high-rate motion for photoacoustic microscopy by orthogonal cross-correlation

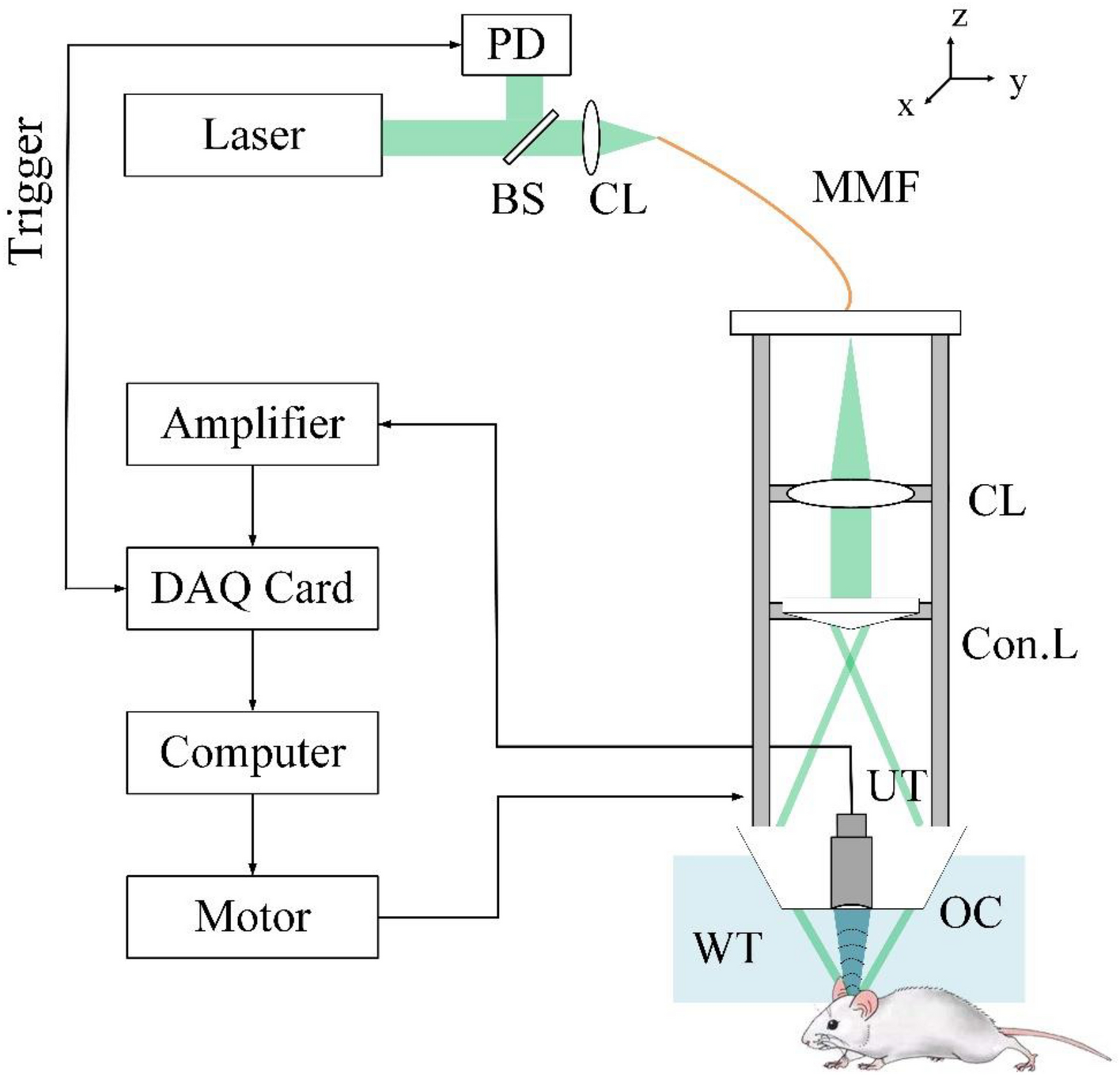

The experimental setup. PD photodiode, BS beam splitter, CL convex lens, MMF multimode fiber, Con.L conical lens, DAQ Card data acquisition card, UT US transducer, OC optical condenser, WT water tank.
