Figure 1

From: Elemental sulfur concentration can be used as a rapid, reliable, and cost-effective predictor of sulfur amino acid content of soybean seeds

Figure 1

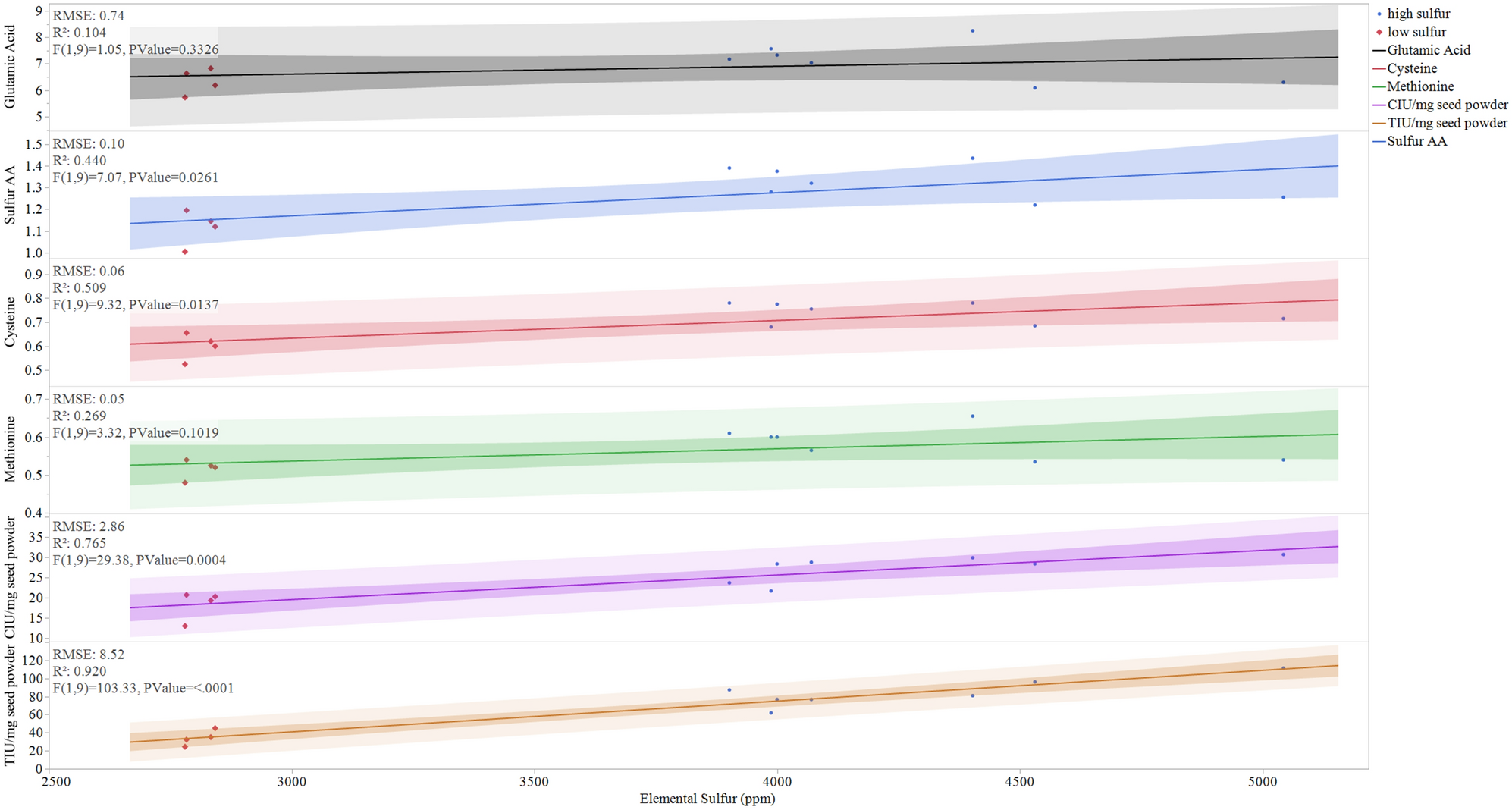

Relationships between total seed elemental sulfur content and other seed components. RMSE indicates root mean square deviation, R2 indicates the coefficient of determination, F indicates the F-value and P-value indicates the output of the statistical test for correlation. The protease inhibitor activities are expressed as TIU (trypsin units inhibited) and CIU (chymotrypsin units inhibited) per milligram seed powder.
