From: Vitamin K2 protects mice against non-alcoholic fatty liver disease induced by high-fat diet

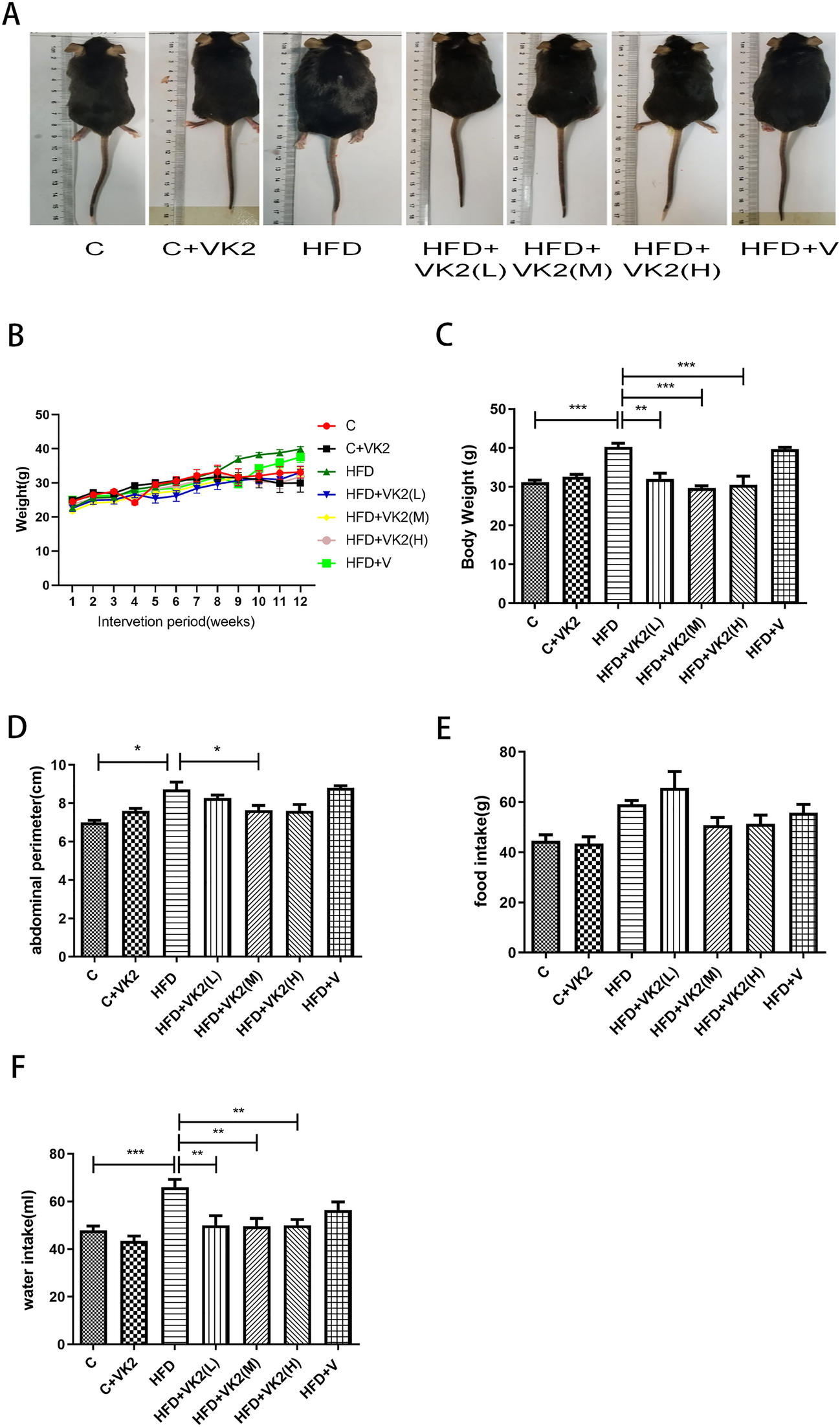

Effects of vitamin K2 on body weight, abdominal circumference, food intake and water intake in mice fed with high fat diet. (A) Effects of vitamin K2 on Body size in high-fat diet fed mice for 12 weeks (B) Effects of vitamin K2 on body weight changes of each group. (C) Effects of vitamin K2 on body weight in 12 weeks. (D) Effect of different doses of vitamin K2 on abdominal circumference in high-fat diet fed mice (E) Effect of different doses of vitamin K2 on food intake in high-fat diet fed mice. (F) Effect of different doses of vitamin K2 on water intake in high-fat diet fed mice. The meaning of abbreviations in the figure: C: control group; C + VK2: control + vitamin K2 group; HFD: high fat diet group; HFD + VK2(L): high fat diet + 0.1 mg/kg vitamin K2 group; HFD + VK2(M): high fat diet + 0.2 mg/kg vitamin K2 group; HFD + VK2(H): high fat diet + 0.4 mg/kg vitamin K2 group; HFD + V: high fat diet + vehicle group. Data are expressed as mean ± SEM (n = 5). *p < 0.05, **p < 0.01; ***p < 0.001.
