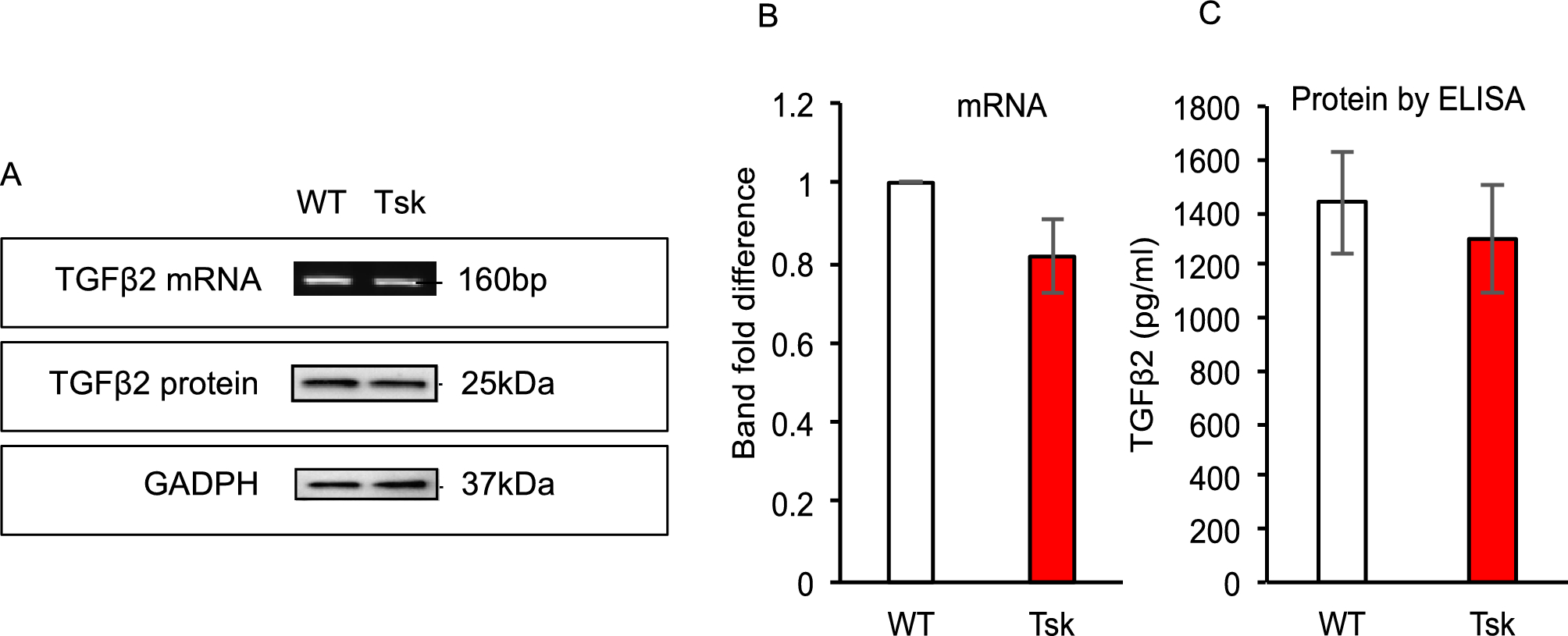

Figure 3
From: Aqueous humor TGFβ and fibrillin-1 in Tsk mice reveal clues to POAG pathogenesis
TGFβ2 total RNA and protein was extracted from mouse anterior segment tissues and analyzed by reverse-transcription PCR (A, top cropped bands), immunoblot (A, middle cropped bands; B, quantitative analysis), and ELISA (C, quantitative analysis). TGFβ2 transcript (B) and protein levels (C) in WT and Tsk mouse anterior segments tissues were similar (p = 0.5; 3 independent experiments). Bars: mean. Error bars: standard error of mean. See Supplementary data Fig. S2 (TGFβ2 mRNA), S3 (TGFβ2 protein) and S3 (GADPH) for full blots from which bands in 3A were cropped.
