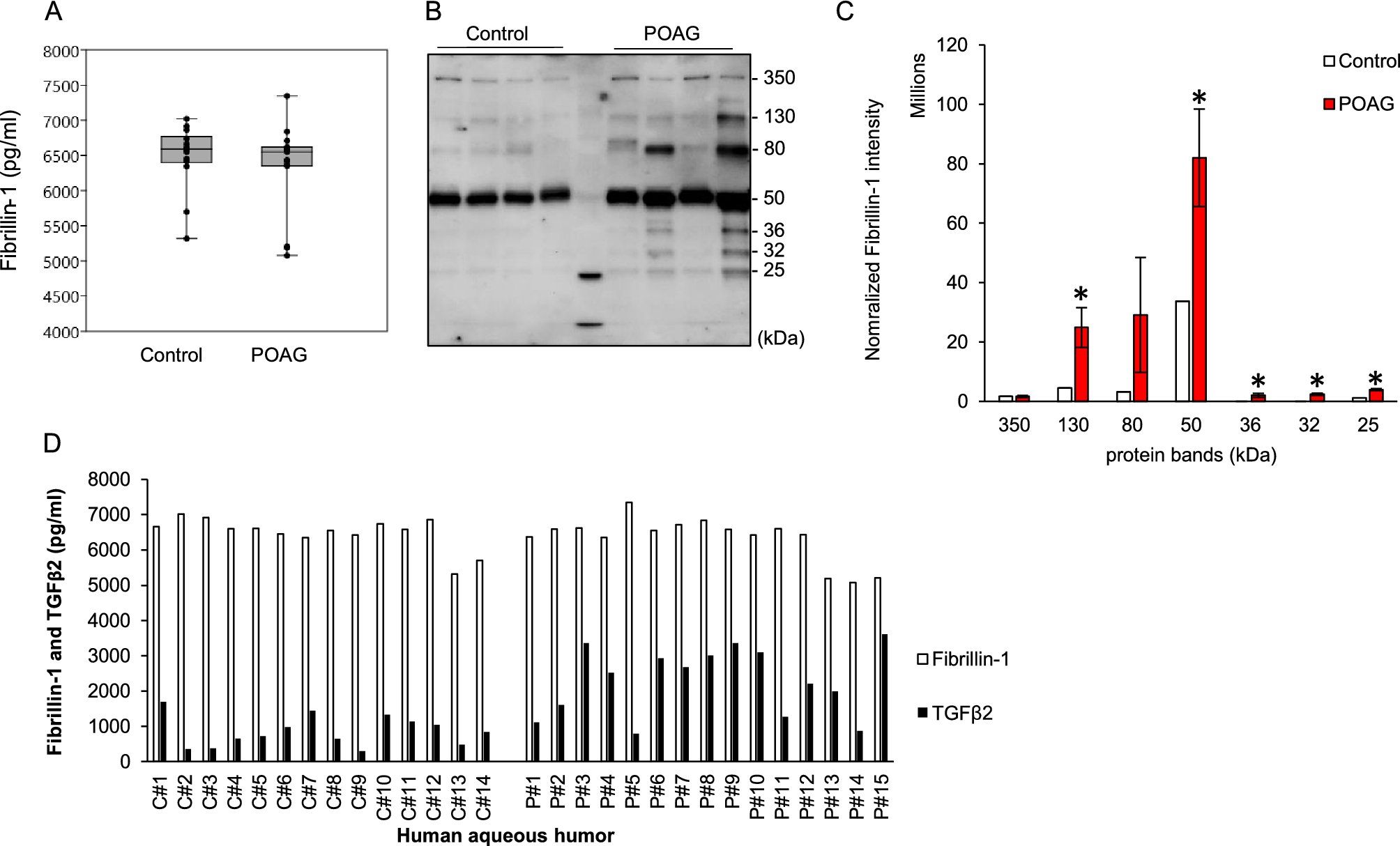

Figure 4
From: Aqueous humor TGFβ and fibrillin-1 in Tsk mice reveal clues to POAG pathogenesis
(A): Fibrillin-1 levels in human aqueous humor (p = 0.45; ELISA; POAG, n = 15; control, n = 14). (B): Representative immunoblots of human aqueous humor fibrillin-1 in POAG and normal controls. (C): Band densitometry of fibrillin-1 normalized to IgG negative controls (130 kDa, *p = 0.02; 50 kDa, *p = 0.04; 36 kDa, *p = 0.01; 32 kDa, *p = 0.001; 25 kDa, *p = 0.003; POAG, n = 15; control, n = 14). (D): Profiles of human aqueous humor fibrillin-1 levels relative to TGFβ2 levels in each POAG (P, n = 15) and normal control (C, n = 14) individual based on ELISA quantification.
