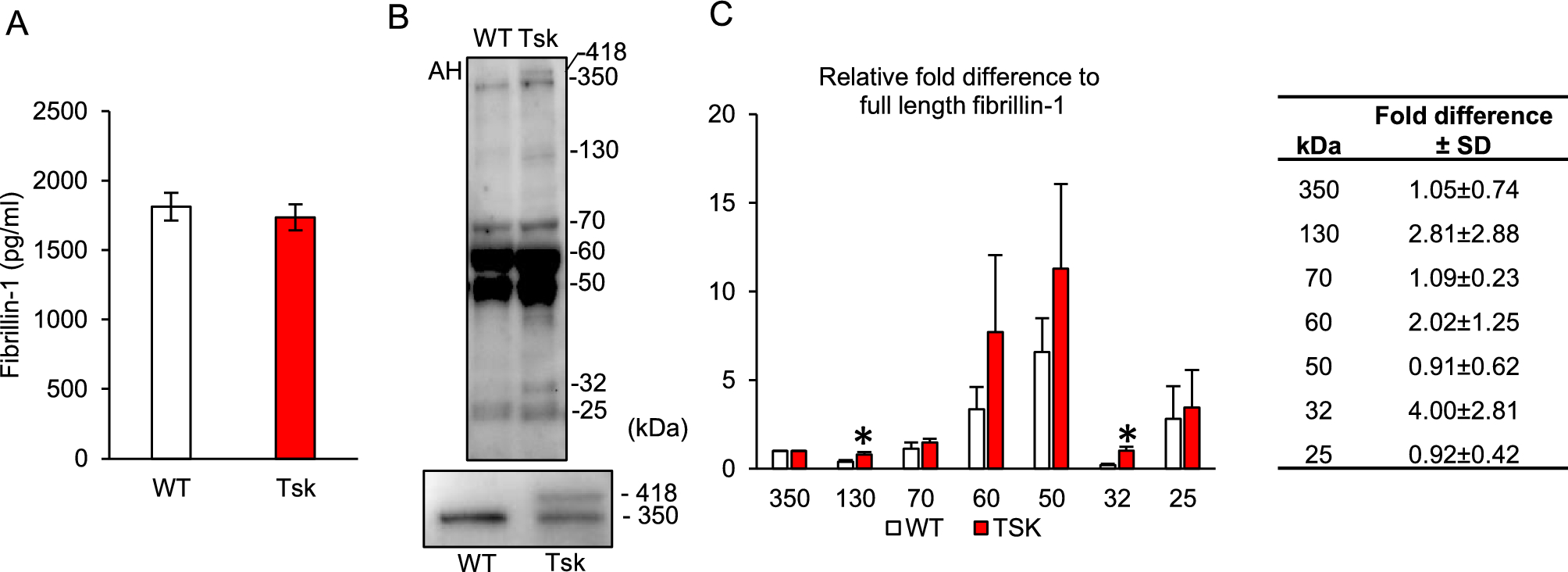

Figure 5
From: Aqueous humor TGFβ and fibrillin-1 in Tsk mice reveal clues to POAG pathogenesis
(A): Fibrillin-1 levels in mouse aqueous humor (p = 0.8; ELISA). (B): Immunoblot analysis of mouse aqueous humor showing full-length fibrillin-1 and lower molecular weight bands (representative of 4 experiments, total n = 40 mice). Inset (bottom): magnified view of full-length bands. (C): Fold-densitometry difference of fibrillin-1 fragments relative to full-length fibrillin-1 (shown as 350kD). *p = 0.04 for 130 kDa; *p = 0.02 for 32 kDa; 4 experiments. Bars: mean. Error bars: standard error of mean. Table: Tsk:WT mouse fold-difference of fibrillin-1 band densitometry in aqueous humor (mean ± standard deviation (SD), 4 experiments).
