Figure 10
From: Implementation of high step-up power converter for fuel cell application with hybrid MPPT controller

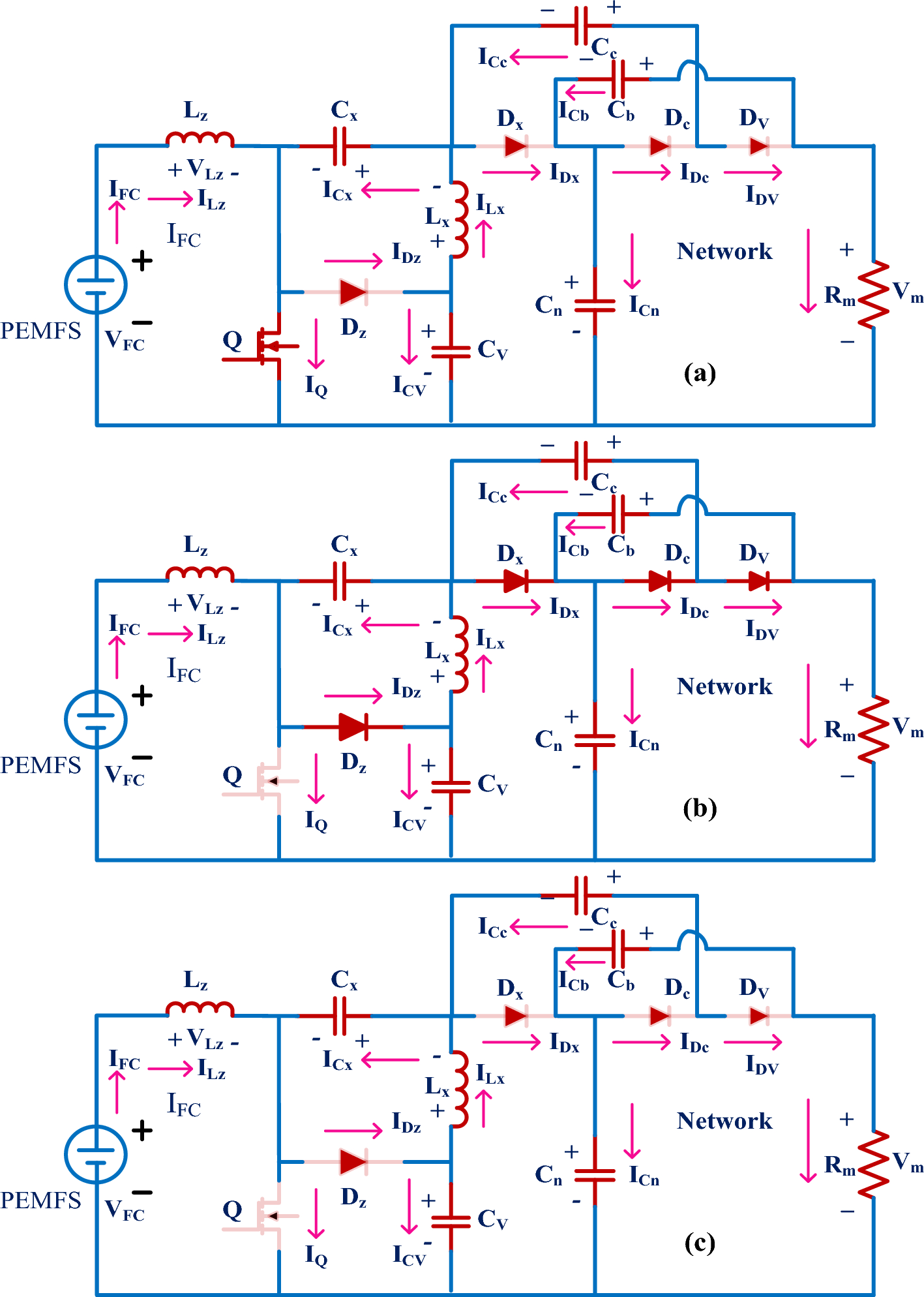

Single switch wide input power supply converter, (a). Q-ON condition, (b). Q-OFF, plus (c). Q and diodes OFF state.
