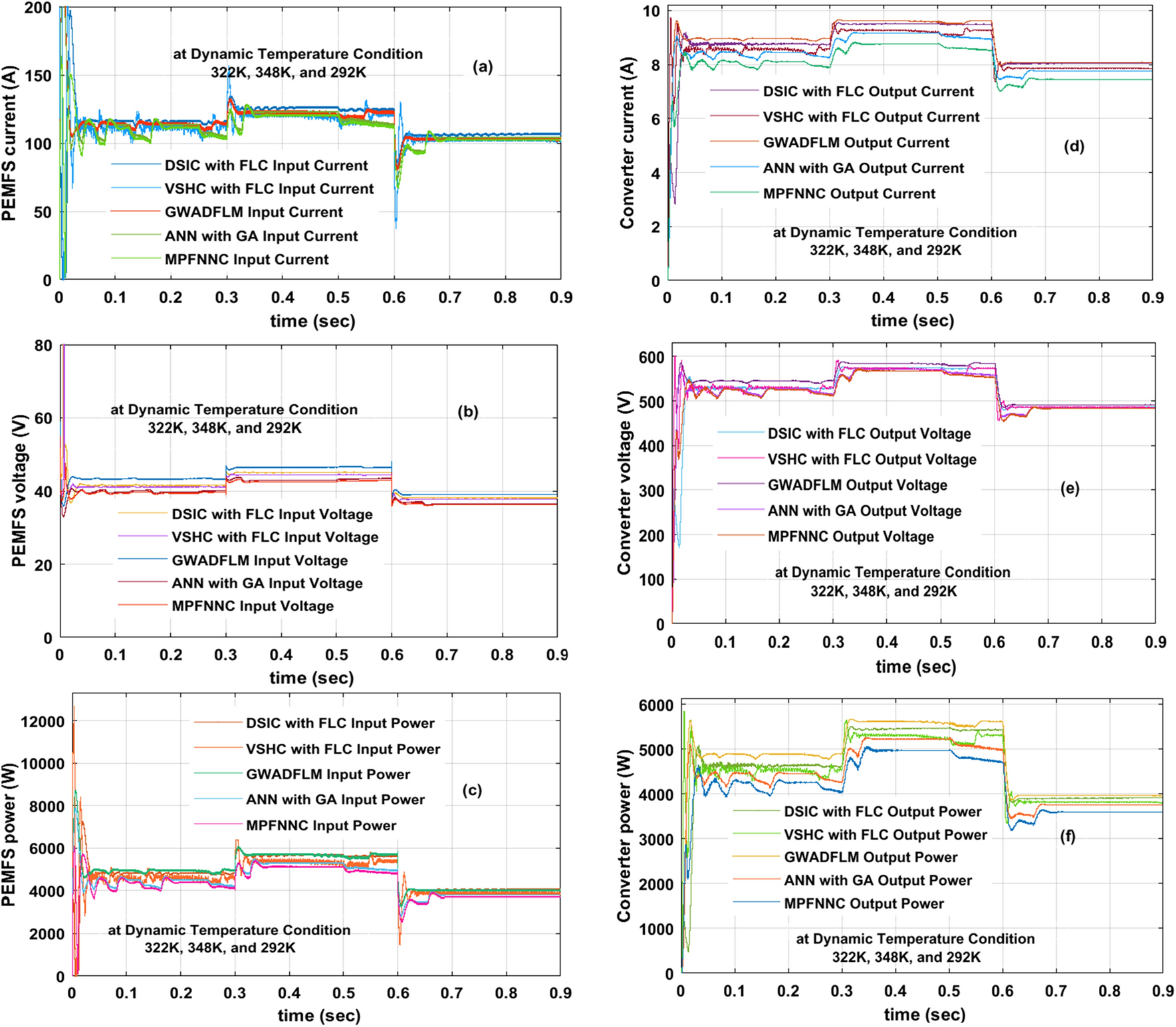

Figure 13
From: Implementation of high step-up power converter for fuel cell application with hybrid MPPT controller
At dynamic temperature, (a). PEMFS current, (b). PEMFS voltage, (c). PEMFS power, (d). Converter current, (e). Converter voltage, plus (f). Converter power.
