Figure 1 | Scientific Reports

Figure 1

From: Elder (Sambucus nigra), identified by high-content screening, counteracts foam cell formation without promoting hepatic lipogenesis

Figure 1

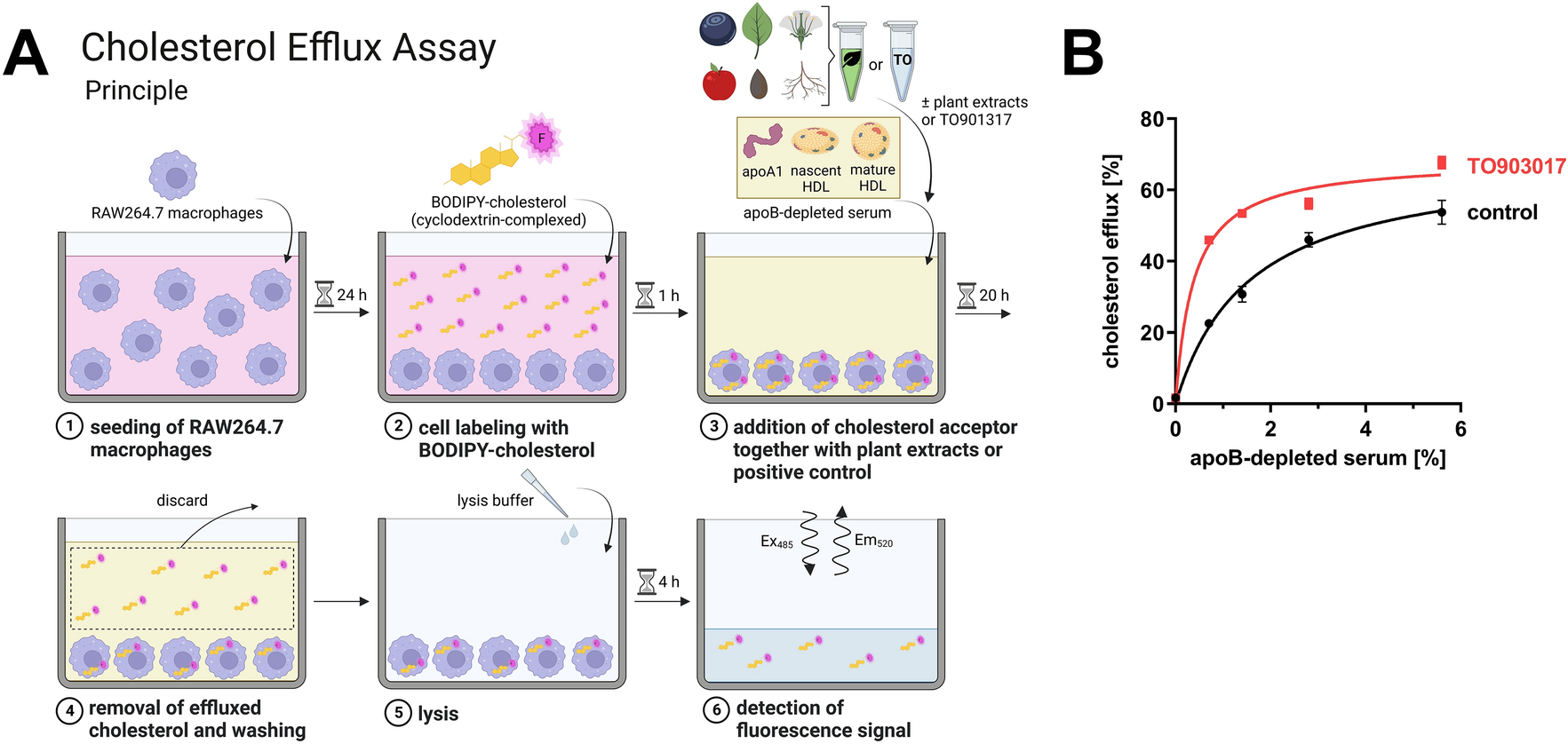

Screening assay principle and validation. (A) Overview of cholesterol efflux measurements, for details see Methods section. Created with BioRender.com. (B) Cholesterol efflux in RAW264.7 macrophages in dependence of acceptor concentration. BODIPY-cholesterol labeled cells were left untreated (control) or treated with TO901317 (10 µM) for 20 h, then apoB-depleted serum was added at the indicated concentrations for 4 h. Fluorescence signal of BODIPY-cholesterol in cell lysates was measured. Data of one experiment performed in triplicates are shown.
